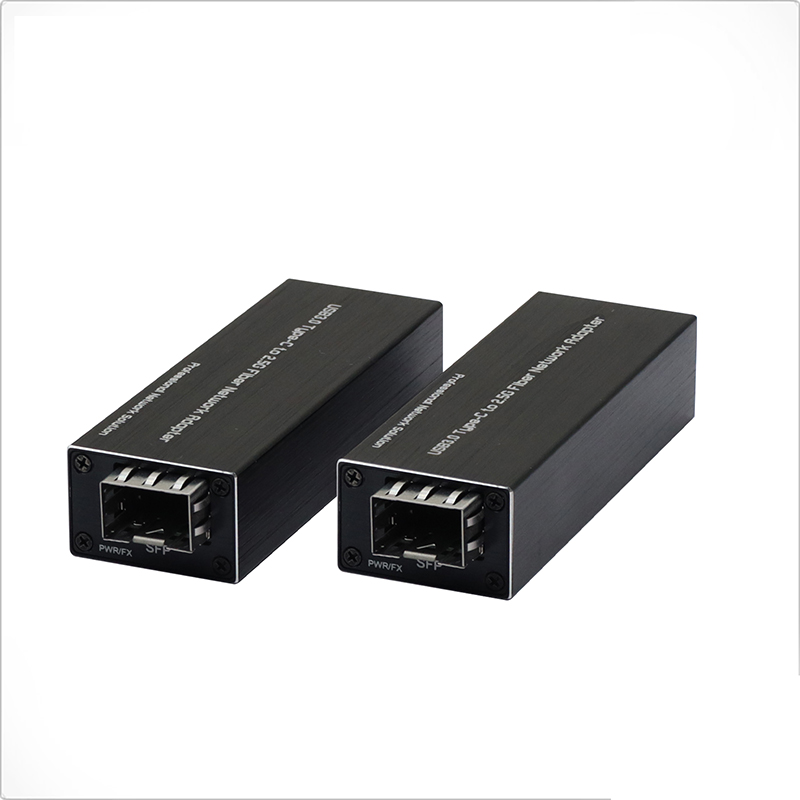

  • Micro Mini USB-C 3.0 to 2.5G SFP Network Adapter

  • Micro Mini USB-C 3.0 to 2.5G SFP Network Adapter

    Model:WXA-TCF2500

    ►    1x100/1000/2.5G Base-X SFP Slot + 1xTYPE-C USB3.0 Slot

    ►    USB 3.0 compatibility ensures high performance packet transfer rate

    ►    Provides a fiber network connection to portable laptops or tablets


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-TCF2500

►    1x100/1000/2.5G Base-X SFP Slot + 1xTYPE-C USB3.0 Slot

►    USB 3.0 compatibility ensures high performance packet transfer rate

►    Provides a fiber network connection to portable laptops or tablets


WXA-TCF2500 Series Micro Mini USB-C to Fiber Network adapter designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through Fiber Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 2.5Gbps Internet access, It provides up to 2.5Gbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.

►    1x100/1000/2.5G Base-X SFP Slot + 1xTYPE-C USB3.0 Slot

►    USB 3.0 compatibility ensures high performance packet transfer rate

►    Provides a fiber network connection to portable laptops or tablets

►    Fiber-to-the-desk connectivity (FTTD) enhances security, reducing the risk of data leaks

►    Full duplex with flow control and half duplex with back pressure operation

►    Highly portable design, with no need for an external power adapter (bus powered)

►    Certified drivers for Windows, macOS and Linux

►    Plug-and-play installation


tandards:

IEEE 802.1p Class of service

IEEE 802.1Q VLAN Tagging

IEEE 802.2 Logical Link Control (LLC)

IEEE 802.3ac VLAN tagging

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3x Flow Control and Back pressure

IEEE802.3u 100Base-TX/FX Fast Ethernet

IEEE 802.3z 1000Base-X Gigabit Ethernet

IEEE 802.3bz2.5GBASE-T Gigabit Ethernet

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Chipset ID:

Realtek RTL8213B

Network Transfer Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

3,720,000pps (2.5Gbps)

Jumbo Frame Support:

9K max.

Other:

Supports power Down / Link down power saving

Software

OS Compatibility:

Windows® 7, 8, 8.1, 10, 11

Windows® Server 2008, 2012, 2016, 2019

macOS 10.9 - 10.14, 11.0, 12.0, 13.0

Linux® kernel 3.5 and up - LTS Versions only

Interface

USB:

1x USB-C 3.0

SFP:

1 x SFP 2.5G or 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Power:

USB Bus Powered

Power Consumption:

5W Max.

LED Indicators:

L/A:

Link/Activity

Dimensions (WxDxH):

78 x 27 x 18 mm

Weight:

46g

Casing:

AluminumCase

Mounting Options:

Desktop

Environmental

Operating Temperature:

0°C ~ 60°C (32° ~ 140°F)

Storage Temperature:

-10° ~ 70°C (14° ~ 158°F)

Relative Humidity:

5% to 90% non-condensing

MTBF

>100,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS


Model

Description

WXA-TCF2500

Micro Mini USB-C 3.0 to 2.5G Fiber Optic Network Adapter

SFP Options

► SFP module is to be purchased separately.

Mounting Options

► Desktop

Power Options

► No need for an external power adapter (bus powered)

Package Contents

► USB 3.0 to SFP 2.5G Fiber Network Adapter x 1

► Quick installation guide x 1
