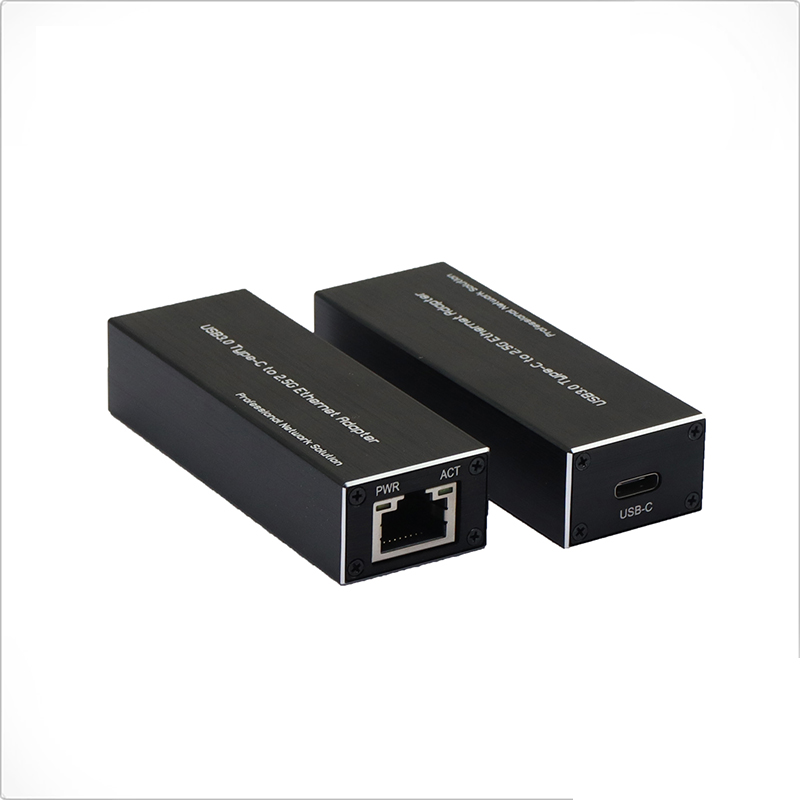

  • Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter

  • Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter

    Model:WXA-TCU2500

    ►    1 x 10/100/1000M/2.5Gbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot

    ►    Supports Gigabit networking over USB 3.0

    ►    IEEE 802.3, 802.3u, 802.3ab, 802.3bz (10BASE-T, 100BASE-TX, 1000BASE-T, 2.5G BASE-T) compatible

    ►    Powered directly from the USB ports


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-TCU2500

►    1 x 10/100/1000M/2.5Gbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot

►    Supports Gigabit networking over USB 3.0

►    IEEE 802.3, 802.3u, 802.3ab, 802.3bz (10BASE-T, 100BASE-TX, 1000BASE-T, 2.5G BASE-T) compatible

►    Powered directly from the USB ports


WXA-TCU2500 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 2.5Gbps Internet access, It provides up to 2.5Gbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.

►    1 x 10/100/1000M/2.5Gbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot

►    Supports Gigabit networking over USB 3.0

►    IEEE 802.3, 802.3u, 802.3ab, 802.3bz (10BASE-T, 100BASE-TX, 1000BASE-T, 2.5G BASE-T) compatible

►    Powered directly from the USB ports

►    Crossover Detection & Auto-Correction (Auto MDIX)

►    IEEE 802.1Q VLAN Tagging support

►    Jumbo Frame support

►    Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload

►    Activity and Link LED indicators

►    Compact, lightweight design for maximum portability


Standards:

IEEE 802.3 10BASE-T

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3bz2.5GBASE-T Gigabit Ethernet

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.1q VLAN tagging

Chipset ID:

Realtek RTL8156B

Network Transfer Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

3,720,000pps (2.5Gbps)

Jumbo Frame Support:

9K max.

Other:

Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload

Software

OS Compatibility:

Windows® XP, Vista, 7, 8, 8.1, 10, 11

Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019

MacOS 10.8 to 10.15, VLAN tagging is currently not supported in macOS

Linux Kernel up to 5.17

UEFI UNDI

Interface

USB:

1x USB-C 3.0

RJ45:

1 x RJ-45 10/100/1000M/2.5Gbps LAN port

Electrical and Mechanical

Power:

USB Bus Powered

Power Consumption:

5W Max.

LED Indicators:

L/A:

Link/Activity

Dimensions (LxWxH):

78 x 27 x 18 mm

Weight:

46g

Casing:

AluminumCase

Mounting Options:

Desktop

Environmental

Operating Temperature:

0°C ~ 60°C (32° ~ 140°F)

Storage Temperature:

-10° ~ 70°C (14° ~ 158°F)

Relative Humidity:

5% to 90% non-condensing

MTBF

> 100,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS


Model

Description

WXA-TCU2500

Micro Mini USB 3.0 to 2.5G Ethernet NIC Network Adapter

Mounting Options

► Desktop

Power Options

► No need for an external power adapter (bus powered)

Package Contents

► USB 3.0 Gigabit Ethernet Adapter x 1

► Quick installation guide x 1
