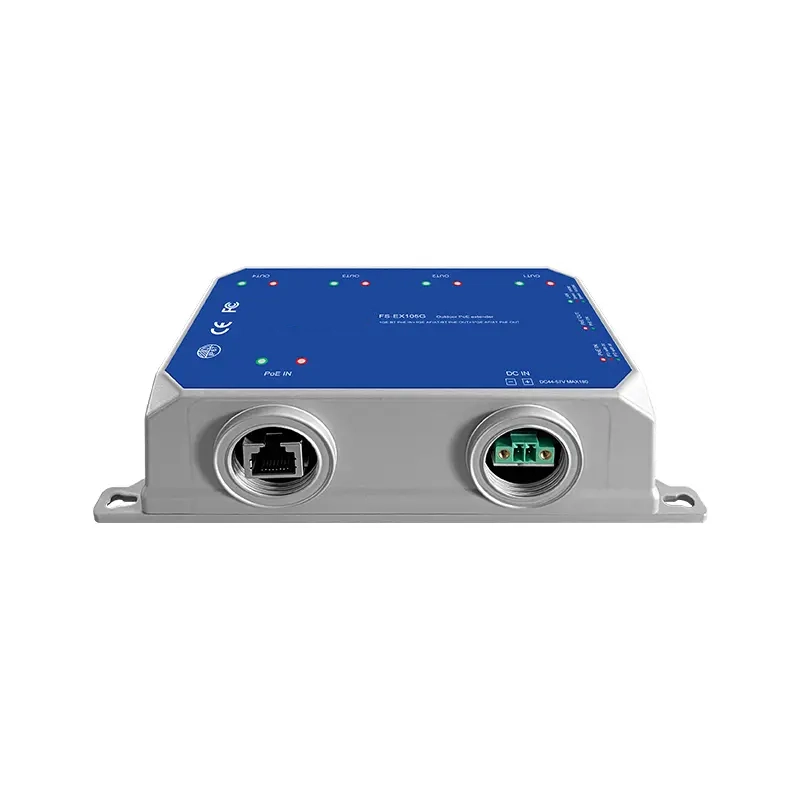

Industrial 4-Port Gigabit Outdoor Waterproof PoE Extender

Industrial 4-Port Gigabit Outdoor Waterproof PoE Extender

Model:WXA-IPE1T4 Series

►   1×Gigabit IEEE802.3bt PoE-IN
►   1×Gigabit IEEE802.3bt PoE-OUT
►   3×Gigabit IEEE802.3at PoE-OUT

►   DC37-57V input, MAX 120W total input power
￥ 0.00
0.00

Product Description

Model:WXA-IPE1T4 Series

►   1×Gigabit IEEE802.3bt PoE-IN
►   1×Gigabit IEEE802.3bt PoE-OUT
►   3×Gigabit IEEE802.3at PoE-OUT

►   DC37-57V input, MAX 120W total input power

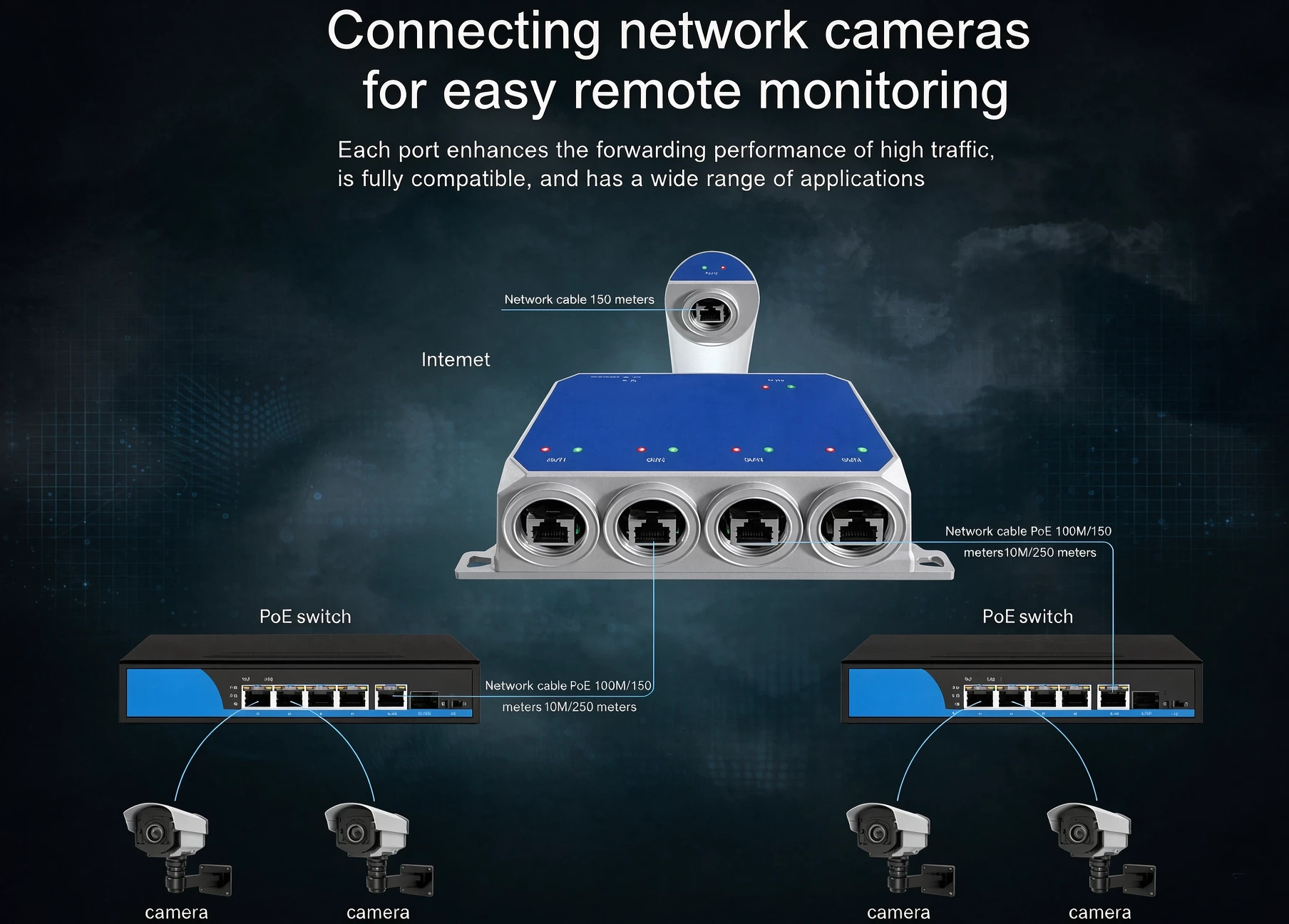

IP67 4-Port 1000M outdoor waterproof PoE extender Model WXA-IPE1T4 series, realize 10/100/1000M PoE network expansion, remote network transmission and network sharing. Easy-to-manage for network devices deployed in complex outdoor environments. Applicable for network access & aggregation in campus, hotel, industrial park, factory and other harsh indoor & outdoor scenarios.

Features

►   Supports 1×Gigabit IEEE802.3bt PoE-IN; 1×Gigabit PoE-OUT(max 90W) + 3×Gigabit PoE-OUT

►   Support passive DC37-57V input, MAX 120W total input power

►   Multi-functional LED indicator lights for quick status checking and easy operation

►   Supports Full/Half-Duplex, Auto-Negotiation

►   Extend PoE transmission distance stably without speed reduction

►   8KV air discharge, 8KV ESD anti-static, 6KV lightning surge protection

     ►   Industrial grade working temperature:-40℃ ~ +80℃,

reliable performance for tough outdoor deployment


Housing Material

Aluminum alloy diecasting

Waterproof Grade

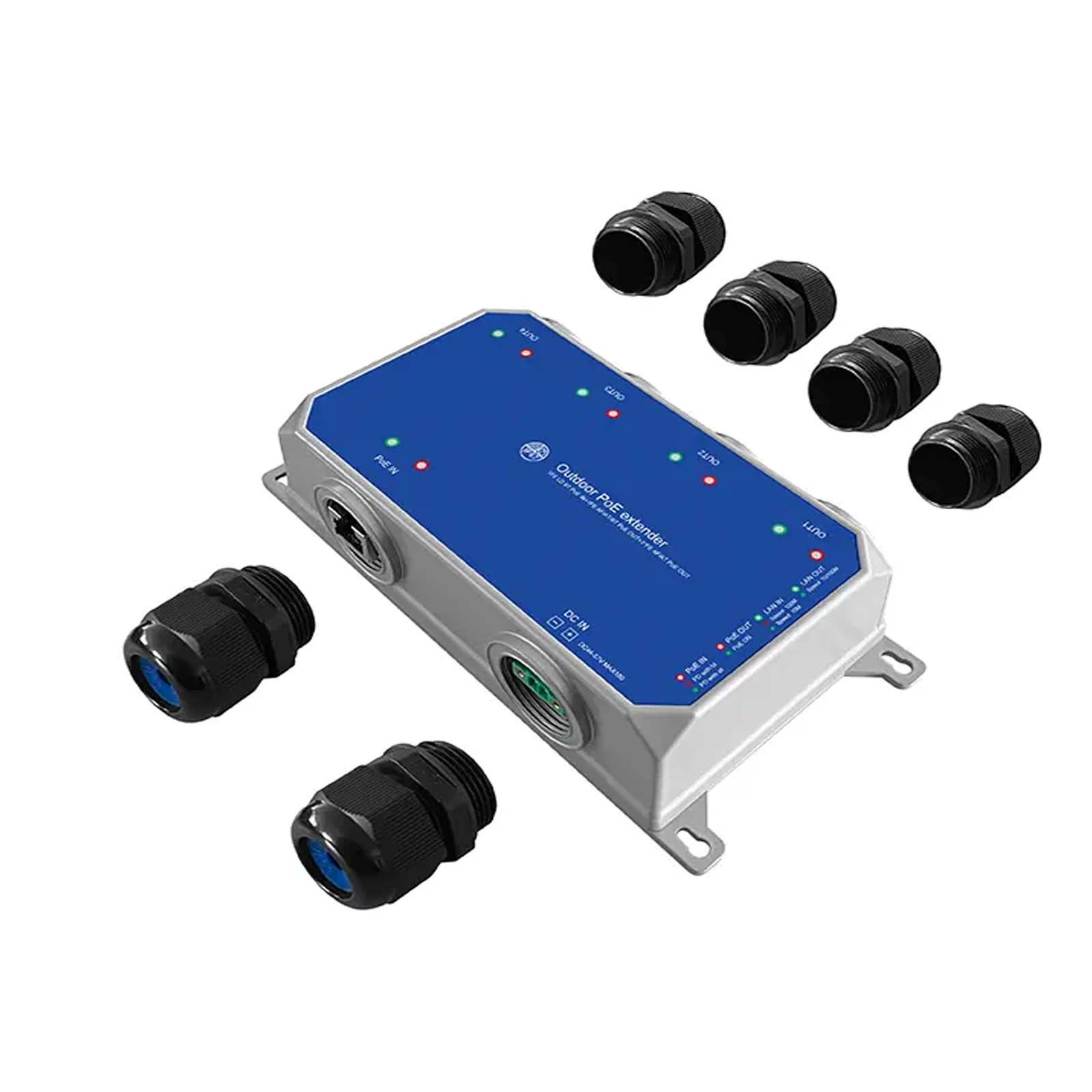

IP67 (with waterproof glands for Φ48 mm ethernet cable)

Port Configuration

1×10/100/1000M PoEIN；4×10/100/1000M PoEOUT

PoEIN Standard

IEEE802.3af/at/bt; Passive DC 3757V, Max 120W Input

PoEOUT Standard

OUT1: IEEE802.3af/at/bt, Max 90W

OUT2OUT4: IEEE802.3af/at, Max 30W per port

PoE Pin Assignment

BT mode: 12+,45+,36,78; AF/AT mode:12+,36

Transmission Distance

10/100/1000M: max 150m with Cat5e and above cable

Indicator

PoEIN LED, each PoEOUT Link/Act LED

Surge Protection

8KV Air discharge, 8KV ESD, 6KV Lightning protection

Operating Temperature

40℃ ~ +80℃

Storage Temperature

45℃ ~ +85℃

Installation Mode

Wallmount / Desktop placement

Dimension

177 ×145 ×43 mm

Net Weight / Gross Weight

0.49kg / 0.57kg

Certifications

CE, FCC, RoHS


Model

Description

WXA-IPE1T4

Industrial 4-port Gigabit Waterproof PoE Extender, 37-57VDC Input

Mounting Options

Wall-Mount
