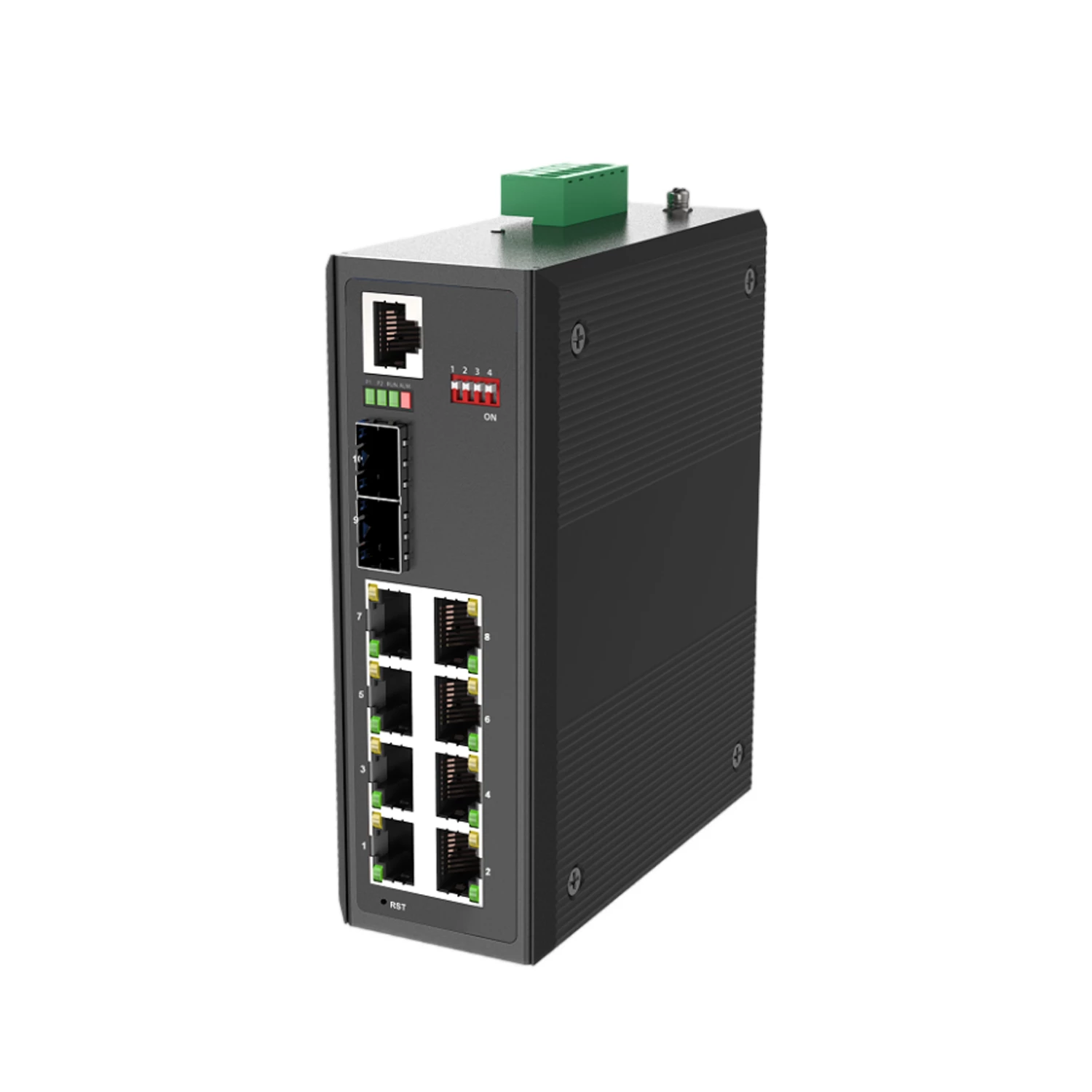

8-Port Gigabit TX + 2-Port Gigabit FX L2+ Managed Industrial Ethernet Switch

Model:WXA-L2I08GM-2SFP

► 8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 9~56VDC power input

￥ 0.00

Product Description

Model:WXA-L2I08GM-2SFP

► 8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 9~56VDC power input

WXA-L2I08GM-2SFP is is designed for harsh industrial environments. It provides stable gigabit data transmission for factory automation, intelligent transportation and outdoor surveillance projects. IP40 allaluminum fanless enclosure supports DINrail and wallmount installation. Dual redundant power input and widetemperature hardware ensure reliable operation under extreme site conditions.

Features

8×10/100/1000BASE-T Gigabit RJ45 Ports
2×100/1000BASE-X SFP slots, support SFP auto-detection
Full gigabit L2+ managed, configuration via CLI / WebGUI / NMS network management system
Industrial redundant ring network: STP / RSTP / MSTP / ERPSv2 sub-50ms fast recovery
Port‑based VLAN, IEEE 802.1Q VLAN, GVRP for flexible network segmentation
Traffic classification: IEEE 802.1p CoS, WRR, Strict priority scheduling mode
SNMPv1/v2c/v3 multi-level network management
Wide operating temperature: ‑40℃ ~ 75℃
All aluminum IP40 housing, compact fan-less design
Dual redundant DC power input; relay fault-alarm output
Support IPv4 static routing, LLDP, SNTP, port mirroring

Hardware	Compliance Standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1x, IEEE802.3af/at/bt
	Copper Ports	8×10/100/1000BASET RJ45, AutoMDI/MDIX (Port 18)
	Fiber SFP Slots	2×100/1000BASEX SFP Slots (Port9, Port10)
	Console Port	1× RJ45toRS232 Serial Console Port, baud rate:115200
	Terminal Block	6pin removable terminal block: PWR1, PWR2, Fault Relay Alarm
	Alarm Relay	1channel relay output for power failure alarm; 1A@24VDC load capacity
	RAM	128 MByte
	FLASH	32 MByte
	Reset Button	<5s: System Reboot；>10s: Restore factory default configuration
Switching Performance	Switch Architecture	StoreandForward
	Nonblocking Switch Fabric	36 Gbps
	Forwarding Rate(64byte packet)	11.9 Mpps
	Packet Buffer Size	4 Mbits
	Maximum Packet Length	10K bytes
	MAC Address Table	8K entries, auto learning & aging
	Flow Control	IEEE802.3x Pause frame(Fullduplex); Backpressure(Halfduplex)
PoE & Power Supply	PoE Ports	Port 18, IEEE802.3 af / at / bt
	PoE Supply Mode	Endspan
	PoE Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
	Max Power Per PoE Port	90W (IEEE802.3bt)
	DC Input Voltage	Dual DC 4856V redundant power input
	Power Consumption(No PoE load)	Max 10 Watts
	Total PoE Power Budget	Max 470W @ dual 52VDC power input Note: Not all ports run 90W simultaneously
Environmental	Operating Temperature	40℃ ~ 75℃
	Storage Temperature	40℃ ~ 85℃
	Operating Humidity	5% ~ 95% noncondensing
	MTBF	907,476 hours (Telcordia SR332 standard)
	Surge Protection	±6kV DC power surge, ±6kV RJ45 port EFT surge protection
	Enclosure	IP40 Aluminum case
	Installation Method	DINRail mount / Wallmount
	Dimension (W×D×H)	138 × 108 × 49 mm
	Weight	Bare unit:660g; With package:860g
Software	Static Routing	Max.32 IPv4 software static routing entries
	Management Interfaces	Console, Telnet, Web Browser, SNMPv1/v2cSecure: SSHv2, TLSv1.2, SNMPv3
	System Maintenance	Remote Syslog; HTTP firmware upgrade; Config upload/download via HTTPLLDP, SNTP; NMS network management; Relay / LED / Trap powerfailure alarm
	VLAN	802.1Q Tag VLAN, Portbased VLAN, GVRP
	Redundancy Protocol	STP/RSTP/MSTP / ERPSv2 sub50ms ring recovery, LACP port trunking
	QoS	8 hardware queues per port, 802.1p / DSCP mapping, SP / WRR / SP+WRR scheduling
	Multicast	IGMP Snooping V1/V2/V3
	Security	802.1X authentication, Port ACL / VLAN ACL, Broadcast storm protection
LED Indicator	PWR(P1/P2) ON	Power input present
	PWR(P1/P2) OFF	No power input
	RUN Blinking	System running normally
	Link/ACT(Port18) ON	Port link up
	Link/ACT(Port18) Blinking	Data transmitting
	Link/ACT(Port18) OFF	Port link down
	ALM ON	Alarm event triggered

Model	Description
WXA-L2I08GM-2SFP	Industrial Managed Ethernet Swtich, 8-port 10/100/1000M RJ45, 9-56VDC
Mounting Options	► Din-rail Mount Bracket is included.
