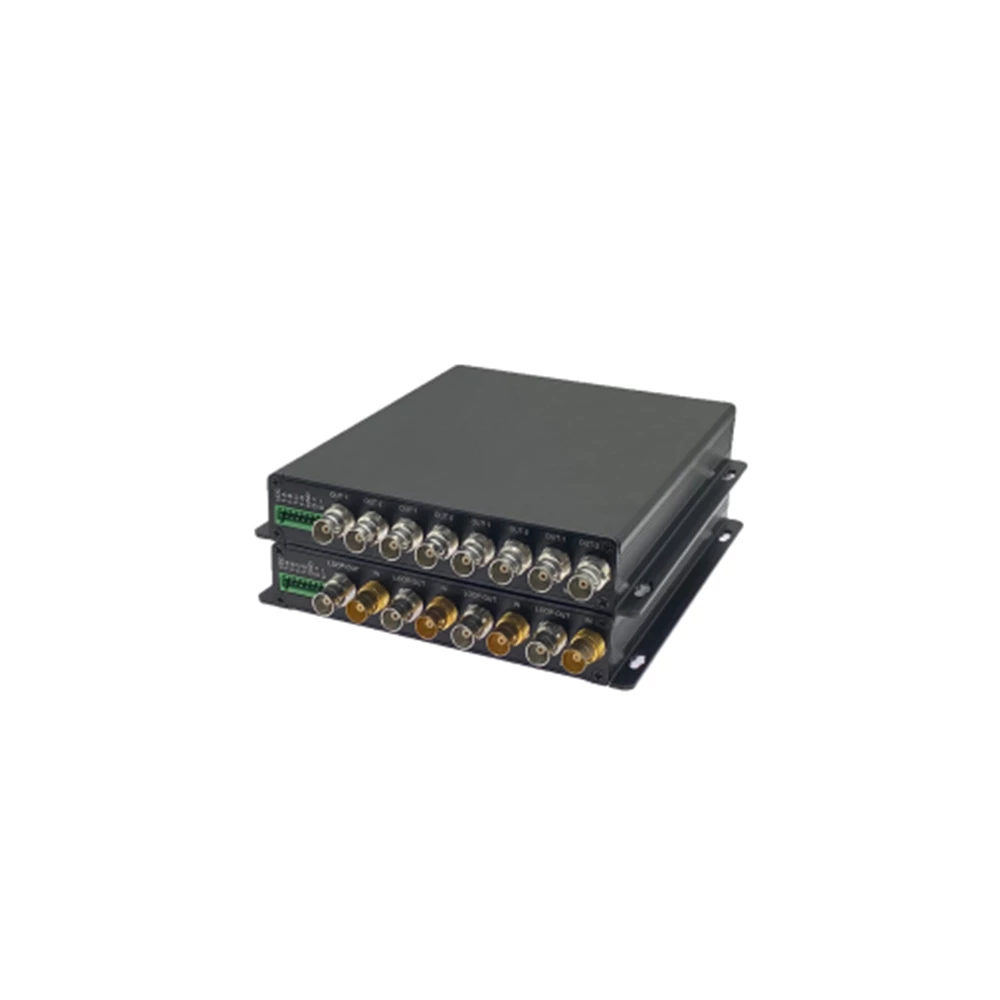

4-Channel 3G-SDI Fiber Converter with RS485 & Tally

Model:WXA-3GSDI-4CH

4-channel 3G-SDI video
FC 20KM standard (customizable)
Optional Gigabit Ethernet

￥ 0.00

Product Description

Model:WXA-3GSDI-4CH

4-channel 3G-SDI video
FC 20KM standard (customizable)
Optional Gigabit Ethernet

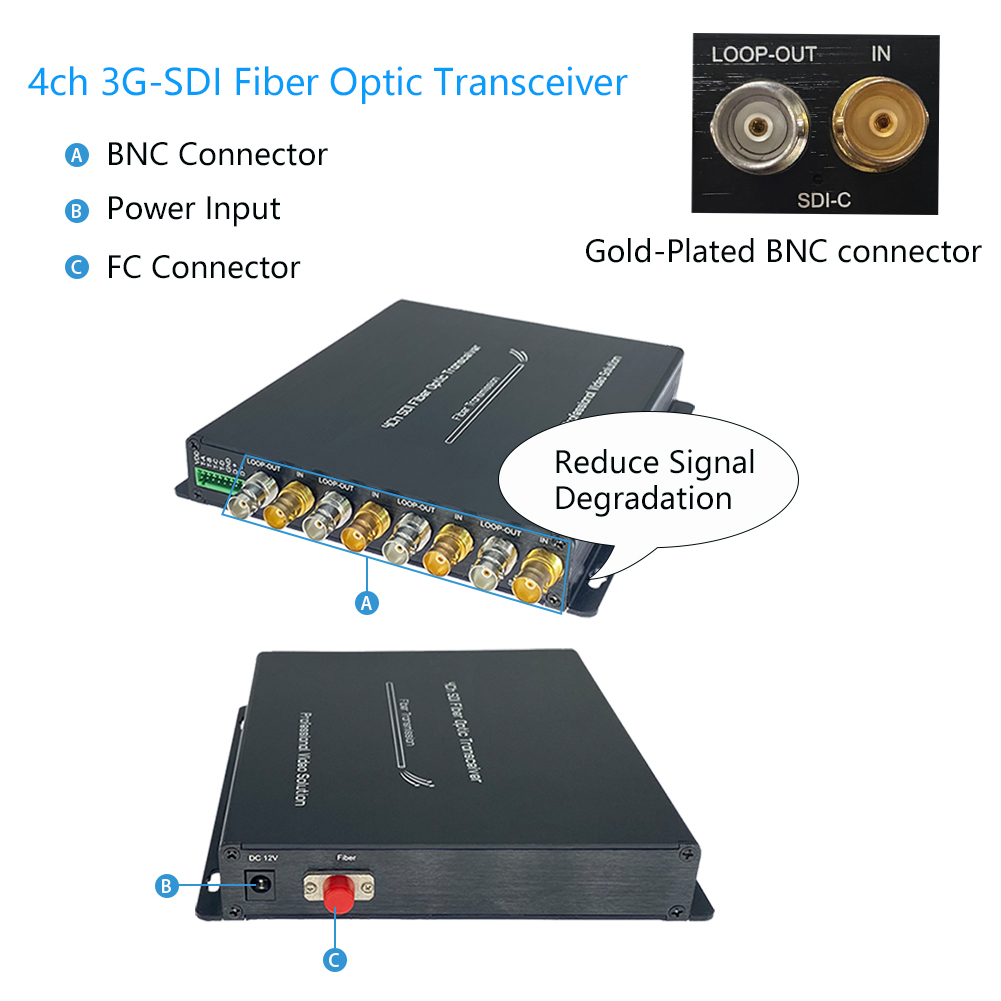

This 4-channel 3G-SDI fiber converter transmits 3G-SDI HD video, RS485 data and 4-channel Tally signals via a single-mode fiber. It offers non-compressed broadcast-level video quality, with loop output function, and is paired with transmitter & receiver for stable professional broadcast applications.

4-channel 3G-SDI video, compatible with 3G/HD/SD-SDI standards
Integrates RS485 (full/half duplex) and 4-channel Tally signals
Single-mode single-fiber transmission, 20km standard (customizable) Non-compressed video,
low jitter, broadcast-grade performance
Optional Gigabit Ethernet, wide operating temperature range, high reliability (MTBF >100,000h

Front-end Broadcast Devices (Cameras, Video Mixer) │ ▼ Transmitter (TX) │ Single Mode Fiber (20km, FC) │ ▼ Receiver (RX) │ ▼ Back-end Display & Control Devices Signal Summary: 4Ch 3G-SDI Video + Reverse RS485 + 4Ch Tally Work as matched TX-RX pair

SDI Input	- Standard: ST-424(3G), ST-292(HD), ST-259(SD) - Data Rate: 270Mbit/s - 3Gbit/s - Input Port: 4×BNC - Reflection Loss: >15dB - Equalization: 0-150m @3Gb/s
SDI Output	- Output Port: 4×75Ω BNC - Nominal Signal Level: 800mV - Rise/Fall Time: 200ps typical - Overshoot: <10% amplitude - Reflection Loss: >15dB- Jitter: <0.2UI
Optical Module	- Fiber Type: Single-mode- Channel: 1 - Transmission Distance: 20km (customizable) - Connector: FC/UPC (SC/LC/ST optional) - Reflection Loss: >15dB- Jitter: <0.2UI
RS485	- Protocol: Full/Half Duplex, NRZ/RZI/Manchester - Max Baud Rate: 57600bps - Connector: Industrial screw terminal
Tally Signal	4 Channels (A/B/C/D), industrial screw terminal connection
Ethernet (Optional)	- Standard: 10/100/1000M - Connector: RJ45
Power Supply	12VDC, 1A

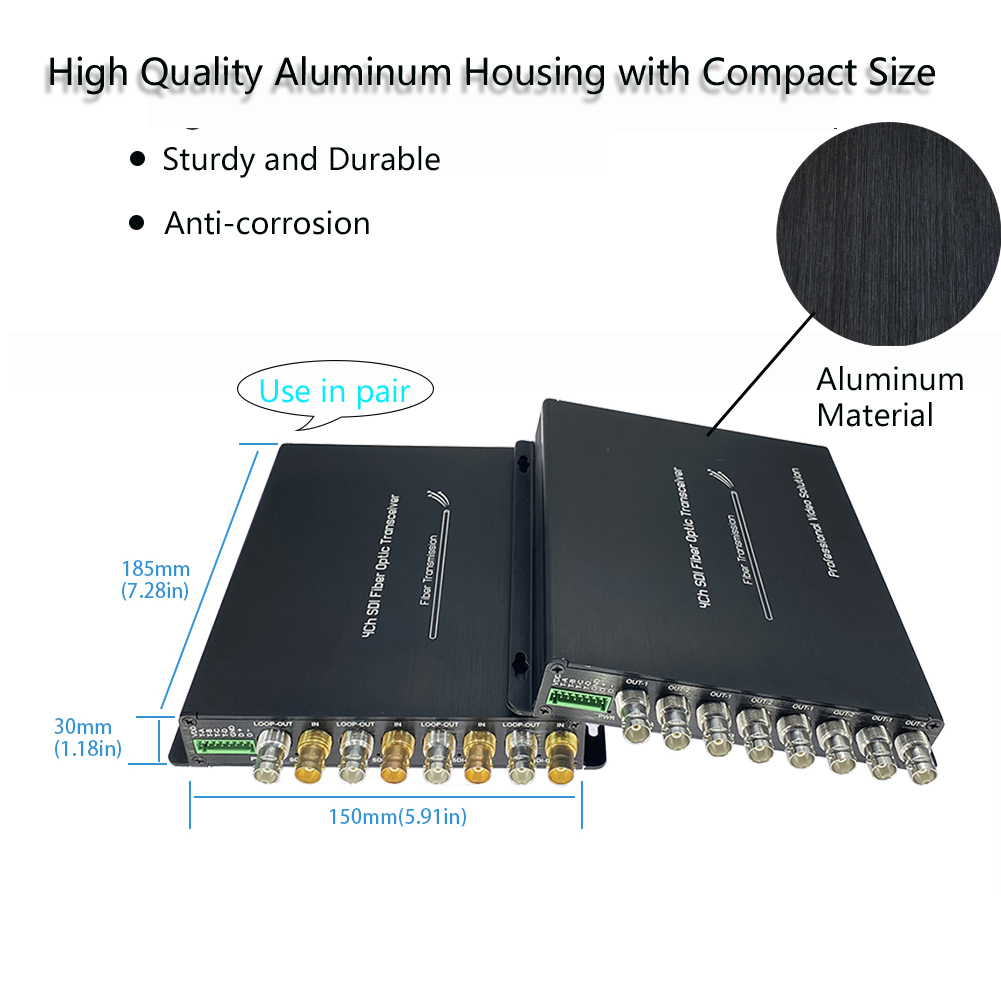

Mechanical Parameters	- Size: 22×17×75px - Net Weight: 0.6kg - Gross Weight: 3kg
Environmental	- Operating Temperature: -10℃ ~ +55℃
Supported SDI Video Formats	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50/59.94; 1080i 23/24/30/50/59.94; 1080P23.98/24/30/50/60

Model	Description
WXA-3GSDI-4CH	4-Channel 3G-SDI Fiber Extender with Loop Out, RS485 Reverse Data & 4CH Tally \| Single Mode FC（LC/ST/SC）, 20km, TX+RX Pair
Mounting Options	► Din-rail Mount Bracket is included.
