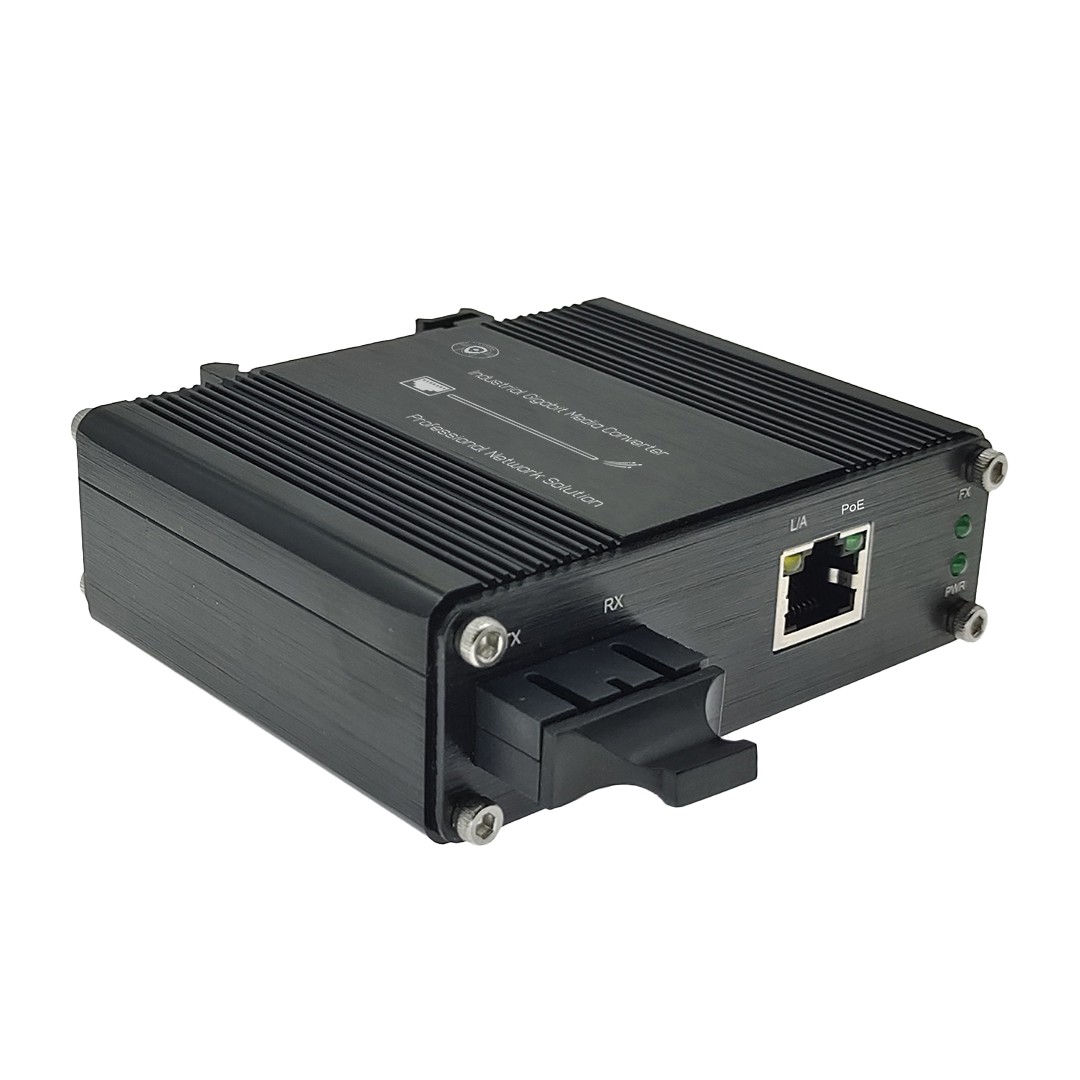

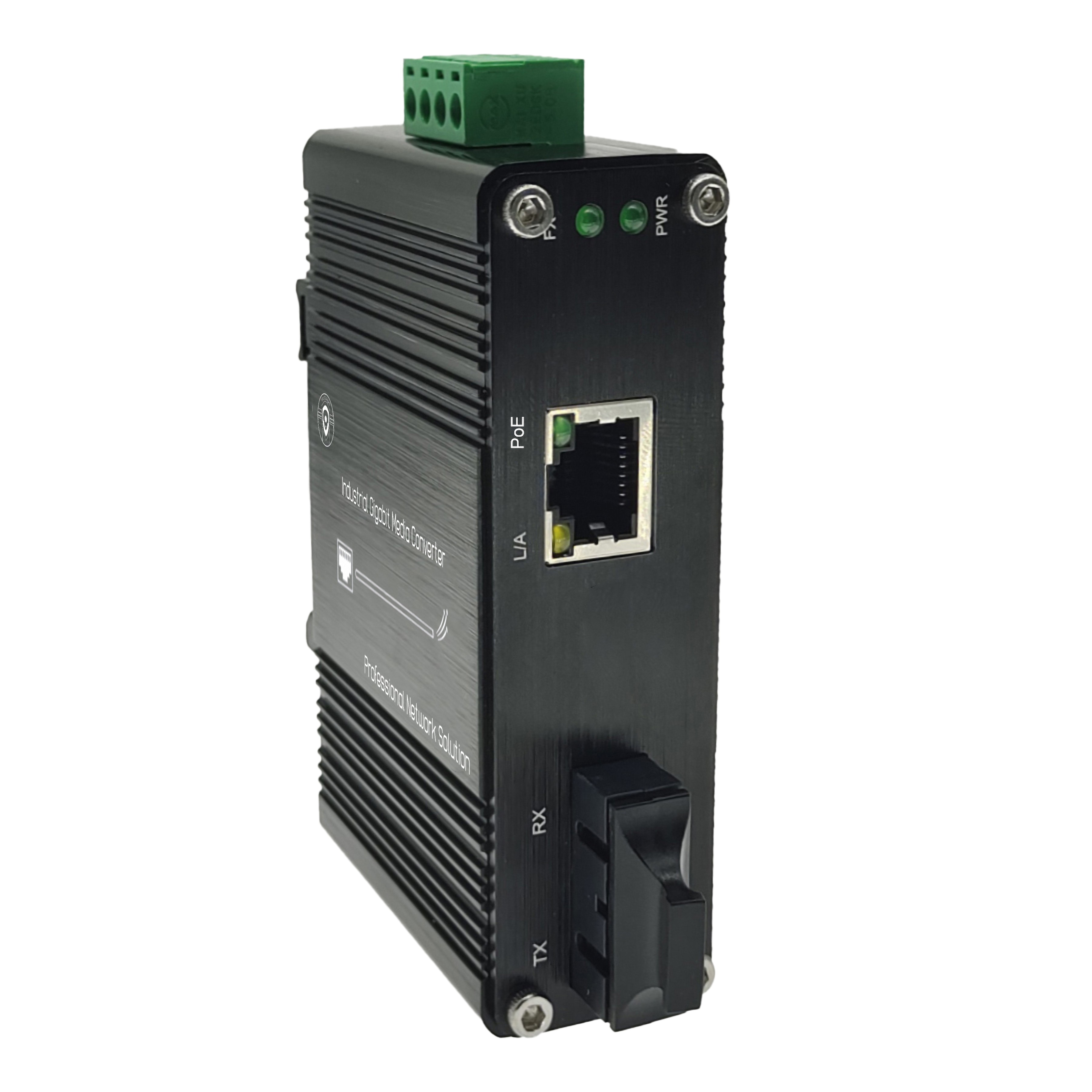

Mini Industrial Gigabit PoE Media Converter 1-Port 30W Gigabit RJ45 + 1-Port Gigabit SC

Mini Industrial Gigabit PoE Media Converter 1-Port 30W Gigabit RJ45 + 1-Port Gigabit SC

Model:WXA-I01G-1SC-P30

►    2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►    1-Port 1000Base-FX SC

►    Supports IEEE802.3af/at 30W

►    IEEE 802.3az Energy Efficient Ethernet (EEE)

►    48~57VDC Terminal Block Power Input


￥ 0.00
0.00

Product Description
Model:WXA-I01G-1SC-P30

►    2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►    1-Port 1000Base-FX SC

►    Supports IEEE802.3af/at 30W

►    IEEE 802.3az Energy Efficient Ethernet (EEE)

►    48~57VDC Terminal Block Power Input


WXA-I01G-1SC series hardened media converter is a dedicated industrial-grade networking device for copper-fiber signal conversion. It supports 10/100/1000BASE-T ↔ 1000BASE-X bidirectional transmission, and the fiber port is backward compatible with 100M bandwidth to meet diverse network deployment needs.
The Ethernet port provides flexible half/full-duplex mode switching, while the -40°C~75°C wide temperature tolerance and rugged aluminum enclosure ensure reliable performance in extreme industrial scenarios such as factory workshops, outdoor monitoring systems and mining sites.


►   1 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports

►   1 x 1000BASE-X SC Port(Fiber Interface: LC/ST/FC Optional)

►   Supports Full/Half-duplex, Auto-negotiation

►   IEEE 802.3az Energy Efficient Ethernet (EEE)

►   IEEE 802.3af/at PoE Support

►   Supports DIN-Rail & Wall-mount Installation

 IP40 Aluminum Case

►   Environmentally hardened  Operating Temperature: -40°C to 75°C (-40°F to 167°F)




Applications


/

Non-PoE

30/60W PoE

90W PoE

Ethernet

Ethernet Standards

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE)

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE)

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE)

PoE Standards

N/A

IEEE802.3af/at

IEEE802.3af/at/bt

Forwarding Mechanism

Store-and-Forward

Store-and-Forward

Store-and-Forward

Forwarding Rate

14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

Packet Buffer Memory/Max Packet Length

1 Mbit/9K Bytes

1 Mbit/9K Bytes

1 Mbit/9K Bytes

Address Table Size

2K MAC Addresses

2048K MAC Addresses

2048K MAC Addresses

Interface

Connector

Optical Port

1x RJ45

1 x 1000Base-X SC

1x RJ45

1 x 1000Base-X SC

1x RJ45

1 x 1000Base-X SC

Electrical & Mechanical

Input Power

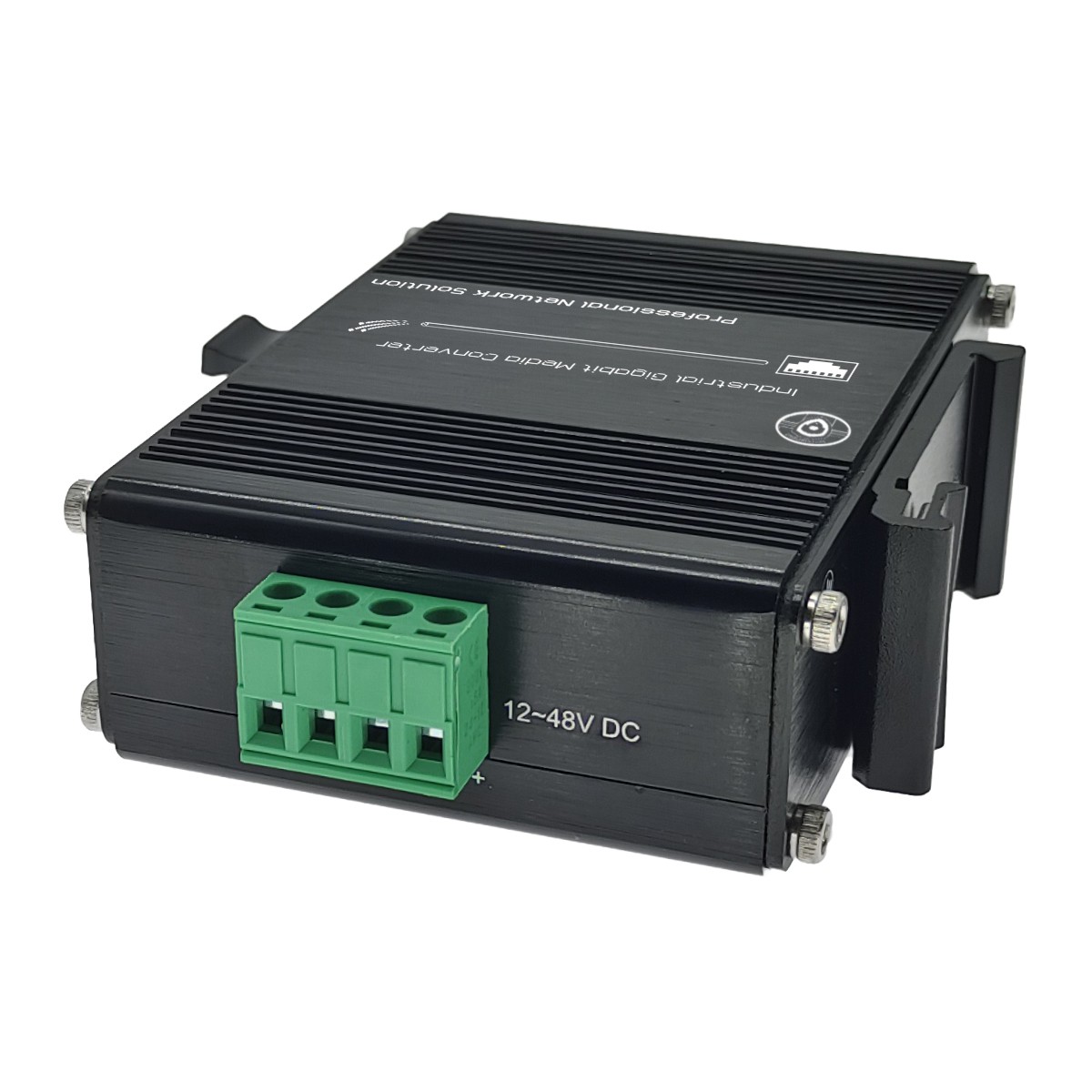

12~48VDC, 4-pin terminal block

12~48VDC, 4-pin terminal block

48~57VDC, 4-pin terminal block

Output Power

N/A

48VDC

48VDC

Power Consumption

3W (Max.)

36W / 65W (Max.)

95W (Max.)

LED Indicators

PWR (Power Status), L/A (Data LINK Status), SPD (Ethernet Status), 100M/1000M (Fiber LINK Status)

PWR (Power Status), L/A (Data LINK Status), POE (PoE Status), 100M/1000M (Fiber LINK Status)

PWR (Power Status), L/A (Data LINK Status), POE (PoE Status), 100M/1000M (Fiber LINK Status)

Dimensions (WxDxH)

95 x 70 x 30 mm

95 x 70 x 30 mm

95 x 70 x 30 mm

Weight

0.25Kg

0.25Kg

0.25Kg

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

-40°C to 75°C (-40°F to 167°F)

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

-40°C to 85°C (-40°F to 185°F)

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

5% to 95% non-condensing

5% to 95% non-condensing

MTBF

> 200,000 hrs

> 200,000 hrs

> 200,000 hrs


Ordering Information


Model

Description

WXA-I02G-1SC-P30

Mini Industrial PoE Media Converter, 1-port 1000BASE-X + 1-port 10/100/1000BASE-T 802.3at PoE

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
