Forwarding Rate

10BASE-tx: 14880pps/port

100BASE-tx: 148800pps/port

1000BASE-tx: 148800pps/port

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and back pressure for Half-duplex mode

MAC Address

2K

Switch Capacity

12Gbps

PoE

PoE Power

30W

PoE Budget

≤75W

Power Pin Assignment

1/2+，3/6-

Software

Web management

Support Double IP;

Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP;

Management IP

Support static IP settings

Support DHCP dynamic acquisition

Port Management

Support port disabling and enabling;

Support MTU setting

Support speed, duplex, and flow control settings

Link Aggregation

Supports up to 4 aggregation groups, with a maximum of 8 members per group;

Port Isolation

Support port isolation

Loopback Protection

loopback protection

Port Mirroring

Supports up to 4 sets of mirror sessions;

Support mirroring of incoming and outgoing directional messages for ports and aggregation groups

SNMP

Support SNMP v1&v2c;

Support SNMP Traps

Traps type: device cold and hot start, port up&down, authentication failure

Spanning Tree

Support STP,RSTP

LLDP

Support LLDP link layer discovery protocol

VLAN

Support port VLAN

Support 802.1Q VLAN

Support Voice VLAN

Support Surveillance VLAN

QOS

Support 802.1p (COS) classification, DSCP classification, and port classification.

Support SP, WRR, WFQ scheduling strategies

Multicast

Support IGMP Querier

MAC management

Support limit on the number of port MAC address learning

Support adding and deleting static MAC addresses

Support search of MAC address

Support dynamic MAC address table viewing

Storm Suppression

Support storm suppression for unknown unicast, multicast, and broadcast packets

Traffic Monitoring

Support monitoring of the number of bytes sent and received, as well as the number of messages sent and received

Cable Tester

Support detection of cable status and cable length

Cloud-network Link

APP cloud management

Network Diagnosis

Support PING

System Management

Support system upgrade

Support system backup and restore

Support reset

Support Web restart

Support configuration saving;

Support switching between Chinese and English

Support system name modification

Environmental&

Mechanical

Operating Temperature

-10°C to 55°C

Relative Humidity

5% to 95% non-condensing

Power Supply

110-240V AC

Dimension

200×118×44mm

Weight

1KG

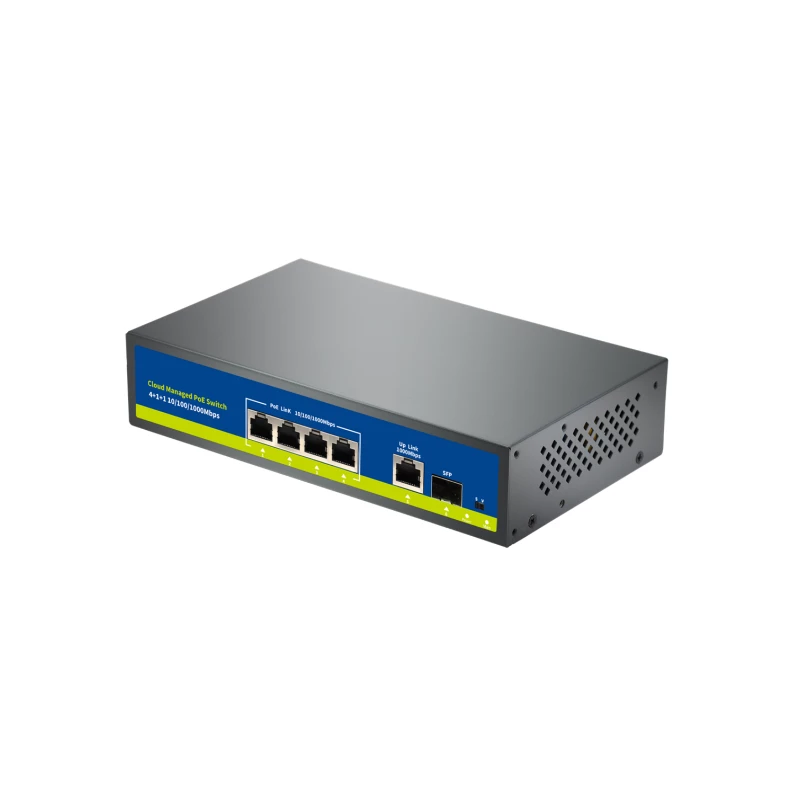

WXA-108GM-C11P

5 x 10/100/1000BASE-T RJ45,1 x 1000Base-X SFP,110-240V AC,IEEE802.3af/at
