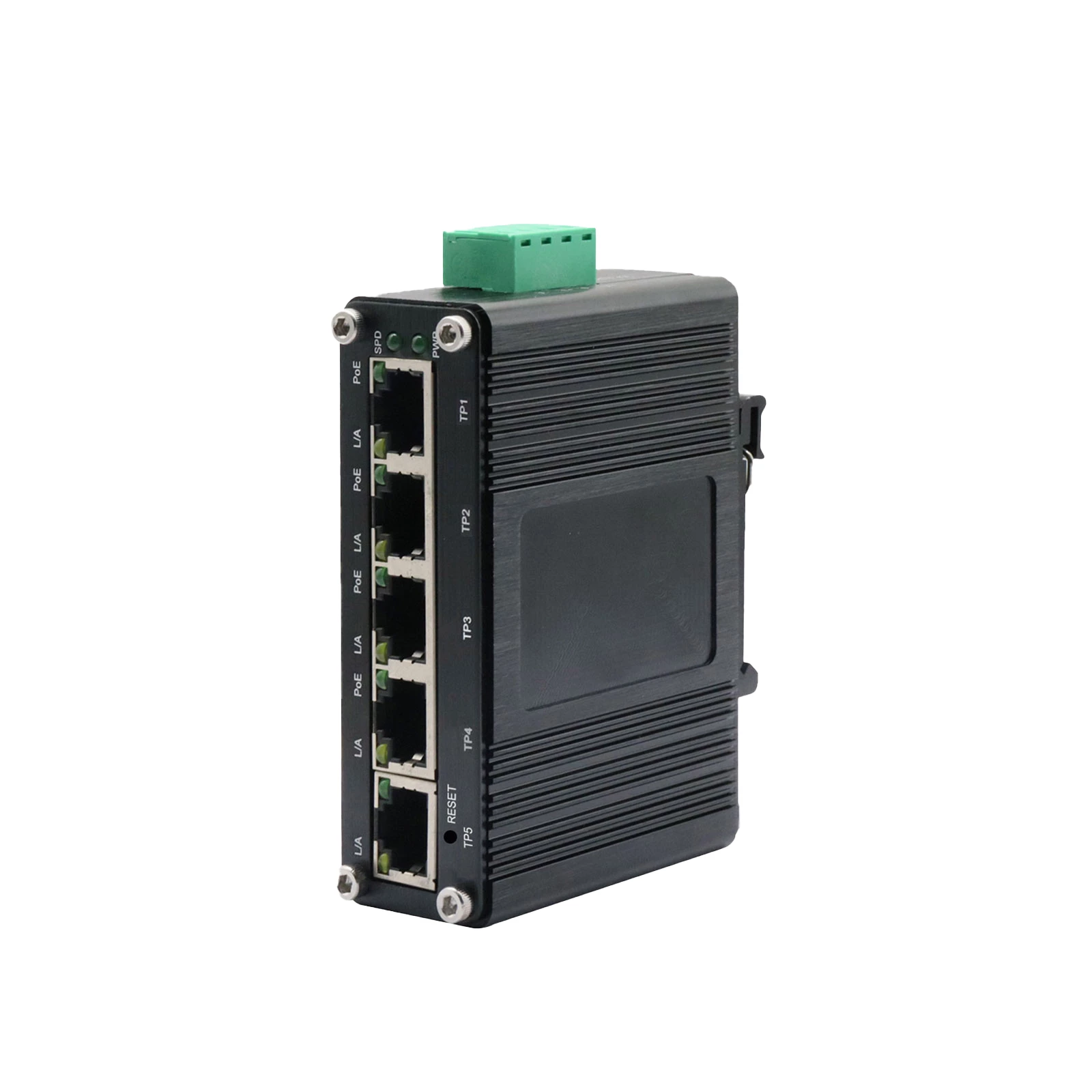

Compact Industrial Managed 5-Port Gigabit Ethernet Switch

Compact Industrial Managed 5-Port Gigabit Ethernet Switch

► 5 x 10/100/1000BASE-T RJ45 Ports with Auto-MDI/MDI-X (Ports 1~4 compliant with IEEE 802.3at PoE+)

► PoE Budget: Up to 120W (48V DC) / 90W (24V DC) / 60W (12V DC)

► 12~48V DC Wide-Range Power Input

► Supports 802.3x Flow Control & WEB Management

► Supports DIN-Rail and Wall-Mount Installation

► -40°C to 80°C (-40°F to 176°F) Operating Temperature

► Optional IEEE 802.3af/at PoE Support

￥ 0.00
0.00

Product Description

► 5 x 10/100/1000BASE-T RJ45 Ports with Auto-MDI/MDI-X (Ports 1~4 compliant with IEEE 802.3at PoE+)

► PoE Budget: Up to 120W (48V DC) / 90W (24V DC) / 60W (12V DC)

► 12~48V DC Wide-Range Power Input

► Supports 802.3x Flow Control & WEB Management

► Supports DIN-Rail and Wall-Mount Installation

► -40°C to 80°C (-40°F to 176°F) Operating Temperature

► Optional IEEE 802.3af/at PoE Support

WXA-I05GM is a mini industrial managed Ethernet switch, featuring 4 x 10/100/1000BASE-T ports, 1 x 10/100/1000BASE-T Uplink port (TP 5), and 12~48V DC wide-range power input. It is compliant with critical industrial standards, CE/FCC certifications, and equipped with an IP40-rated rugged enclosure.

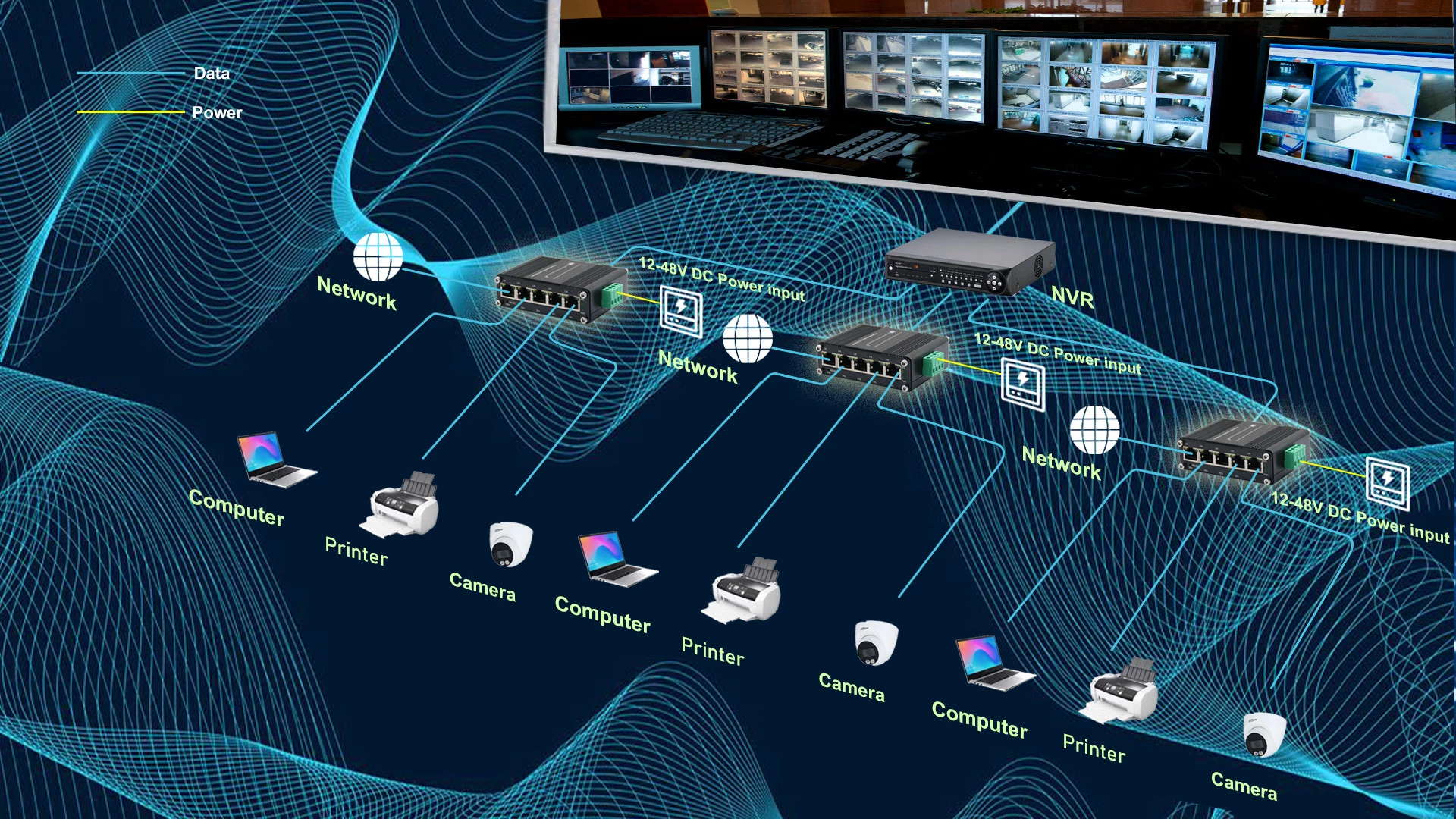

The switch delivers reliable performance against vibration and shock, with a wide operating temperature range of -40~80°C. Supporting DIN-rail and wall-mount installation, it undergoes 100% burn-in testing to ensure stability in harsh environments. Ideal for cost-effective industrial Ethernet applications, it is suitable for industrial networking, intelligent transportation systems (ITS), military, and utility markets—where environmental conditions exceed commercial product specifications.


► 5 x 10/100/1000BASE-T RJ45 Ports with Auto-MDI/MDI-X (Ports 1~4 compliant with IEEE 802.3at PoE+)

► PoE Budget: Up to 120W (48V DC) / 90W (24V DC) / 60W (12V DC)

► 12~48V DC Wide-Range Power Input

► Supports 802.3x Flow Control & WEB Management

► Supports DIN-Rail and Wall-Mount Installation

► -40°C to 80°C (-40°F to 176°F) Operating Temperature

► Optional IEEE 802.3af/at PoE Support


Ethernet

Standards

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3af/at Power over Ethernet Plus


Forwarding & Filtering Rate

14.88kpps (10Mbps), 148.8kpps (100Mbps), 1.488Mpps (1000Mbps)


Backplane Bandwidth

20Gbps


Switch Fabric

10Gbps, non-blocking


Packet Buffer

1Mbits


Max Packet Length

10Kbytes


MAC Address Table

8K Entries

Interfaces

RJ45 Ports

5x 10/100/1000Base-T auto-MDI/MDI-X ports


PoE Port (Optional)

RJ45 ports compliant with IEEE802.3af/at;

Power Pin Assignment: 4/5(+), 7/8(-)

PoE (Optional)

PoE Budget

Up to 120W (48VDC), 90W (24VDC), 60W (12VDC)

Environment

Operating Temperature

-40°C to 80°C (-40°F to 176°F)


Storage Temperature

-40°C to 85°C (-40°F to 185°F)


Relative Humidity

5% to 95% non-condensing


MTBF

> 200,000 hrs

Electrical & Mechanical

Input Power

12~48VDC (4-pin Terminal Block)


Power Consumption

<125W (Non-PoE <6W)


Protection Features

Automatic Resettable Power Input Overload, Reverse Polarity Protection


Reset Button

Supported


Dimensions (WxDxH)

95 x 70 x 29 mm


Weight

0.25KG


Casing

Aluminum Case


Mounting Options

DIN-Rail / Wall-mount

LED Indicators

Indicator Types

PWR (Power Status), SPD (Data Rate), L/A (Link/Activity), PoE (PoE Status)

Software & Management

System Settings

Device Info, Account Settings, Restoring, Reboot, Upgrade


Port Management

Port Settings, Port Mirroring, Port Statistics, Rate Limit


VLAN Settings

802.1Q VLAN, PVID Settings, Hybrid Port


QoS Settings

Priority Selection, Scheduling Mode


Diagnostics

Loop Detection


Configuration Management

Get Configuration, Restore Configuration, Saving Configuration


Default Access

Default IP: 192.168.40.253; Default User Name/Password: admin/admin


Model

Description

WXA-I05GM

5x10/100/1000T 12-48VDC

Mounting Options

► Default DIN-Rail Bracket installed;

Power Options

► Power Supply is to be purchased separately
