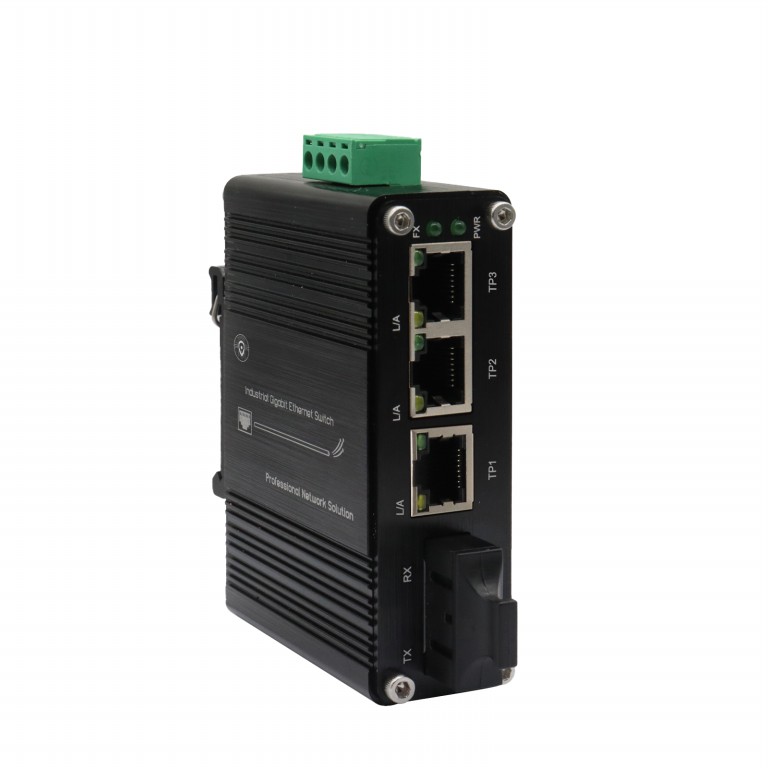

Mini Industrial Switch: 3Port Gigabit RJ45 + 1 Gigabit SC Port

Model:WXA-I03G-1SC

► 3 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

￥ 0.00

Product Description

Model:WXA-I03G-1SC

► 3 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

WXA-I03G-1SC is a Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

► 3 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

► 1000BASE-X SC

► 12~48VDC wide range power input with power booster function

► Supports 802.3x Flow control

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Ethernet	Standards	IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.3az (EEE)
	Processing Type/Rate	Store-and-Forward; 14,880/148,800/1,488,000 pps (10/100/1000Mbps)
	Packet Buffer/Switch Fabric	4Mbit; 12Gbps
	Max Packet Len/MAC Table	9K Bytes; 2K entries
Interface	Connector/Optical Port	3x RJ45; 1x SC 1000Base-X
Electrical & Mechanical	Input Power/Consumption	12~48VDC (4-pin terminal block); 5W Max
	LED Indicators	PWR (Power), L/A (Ethernet LINK), FX (Fiber LINK)
	Dimensions/Weight/Mounting	95×70×30mm; 0.25Kg; Aluminum Case (DIN-Rail/Wall-mount)
Environmental	Operating/Storage Temp	-40°C~75°C (-40°F~167°F); -40°C~85°C (-40°F~185°F)
	Humidity/MTBF	5%~95% non-condensing; >200,000 hrs
Regulatory Approvals	Certifications	ISO9001, CE, FCC, RoHS
	EMI/EMS	EN55022:2010+AC:2011 Class A; EN61000-3-2/3:2006+A1+A2/2013; EN55024:2010; IEC 61000-4-2/3/4/5/6/8

Model	Description
WXA-I03G-1SC	3-Port 10/100/1000T + 1-Port 1000X SC, 12-48VDC Wide Input & Voltage Booster
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
