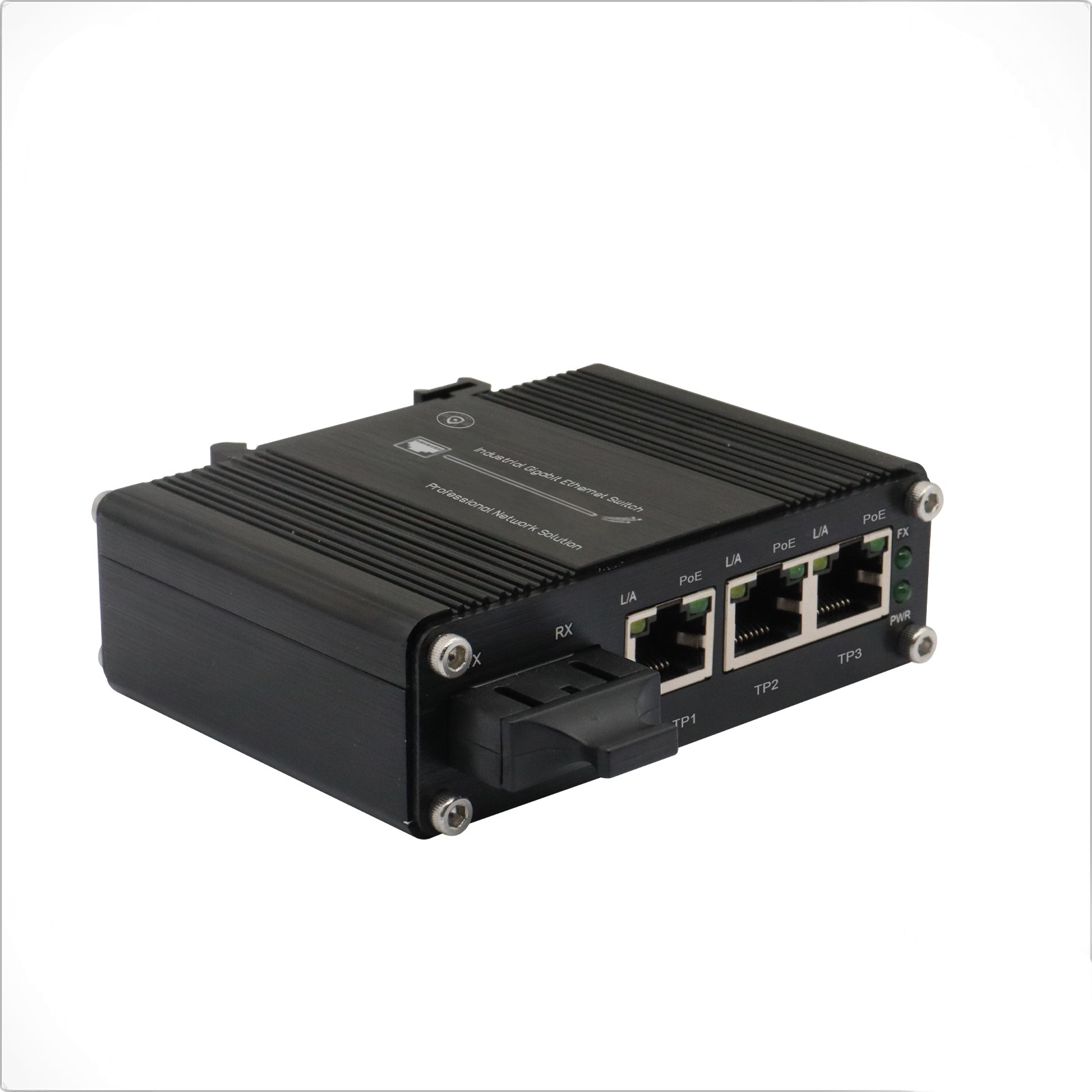

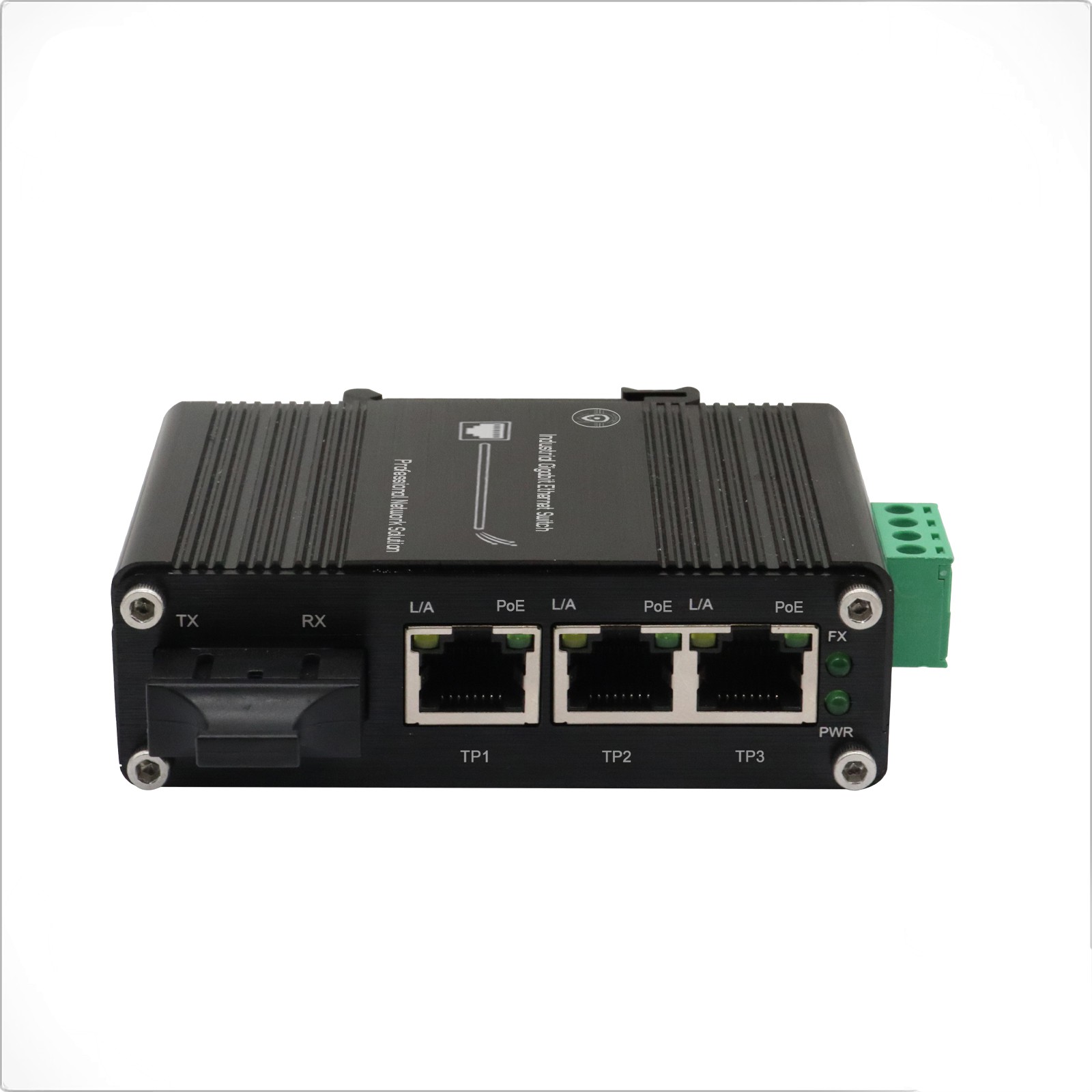

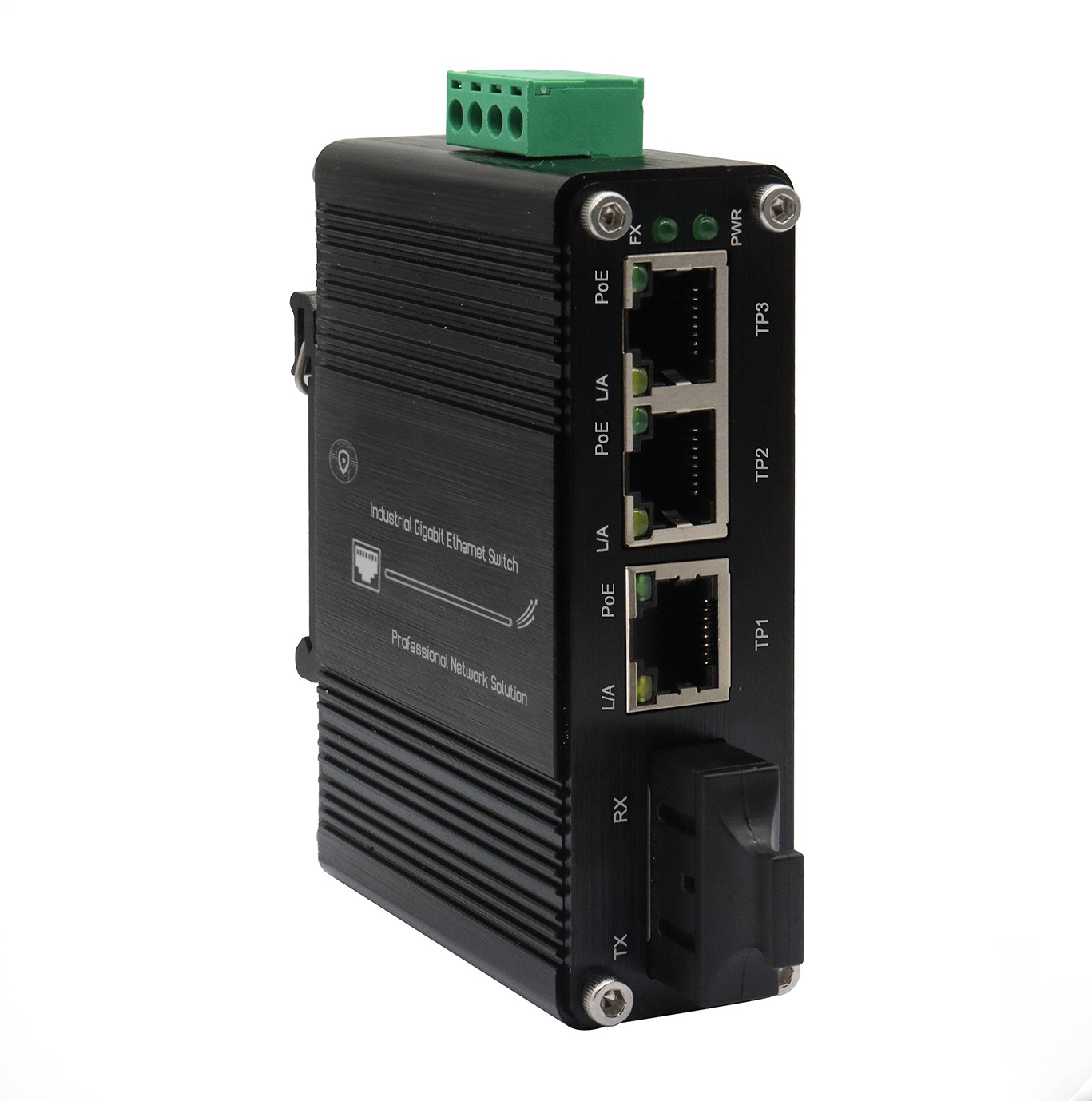

802.3at PoE+ Mini Industrial Switch: 3-Port Gigabit PoE + 1 Gigabit SC

802.3at PoE+ Mini Industrial Switch: 3-Port Gigabit PoE + 1 Gigabit SC

Model:WXA-I03G-1SC-P90

►   3 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~48VDC wide range power input



￥ 0.00
0.00

Product Description

Model:WXA-I03G-1SC-P90

►   3 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~48VDC wide range power input



WXA-I03G-1SC-P90 is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


►   3 x 10/100/1000BASE-T RJ45  auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

►   1000BASE-X SC

►   Up to 90-watt PoE budget (48VDC)

►   12~48VDC wide range power input with power booster function

►   Supports 802.3x Flow control

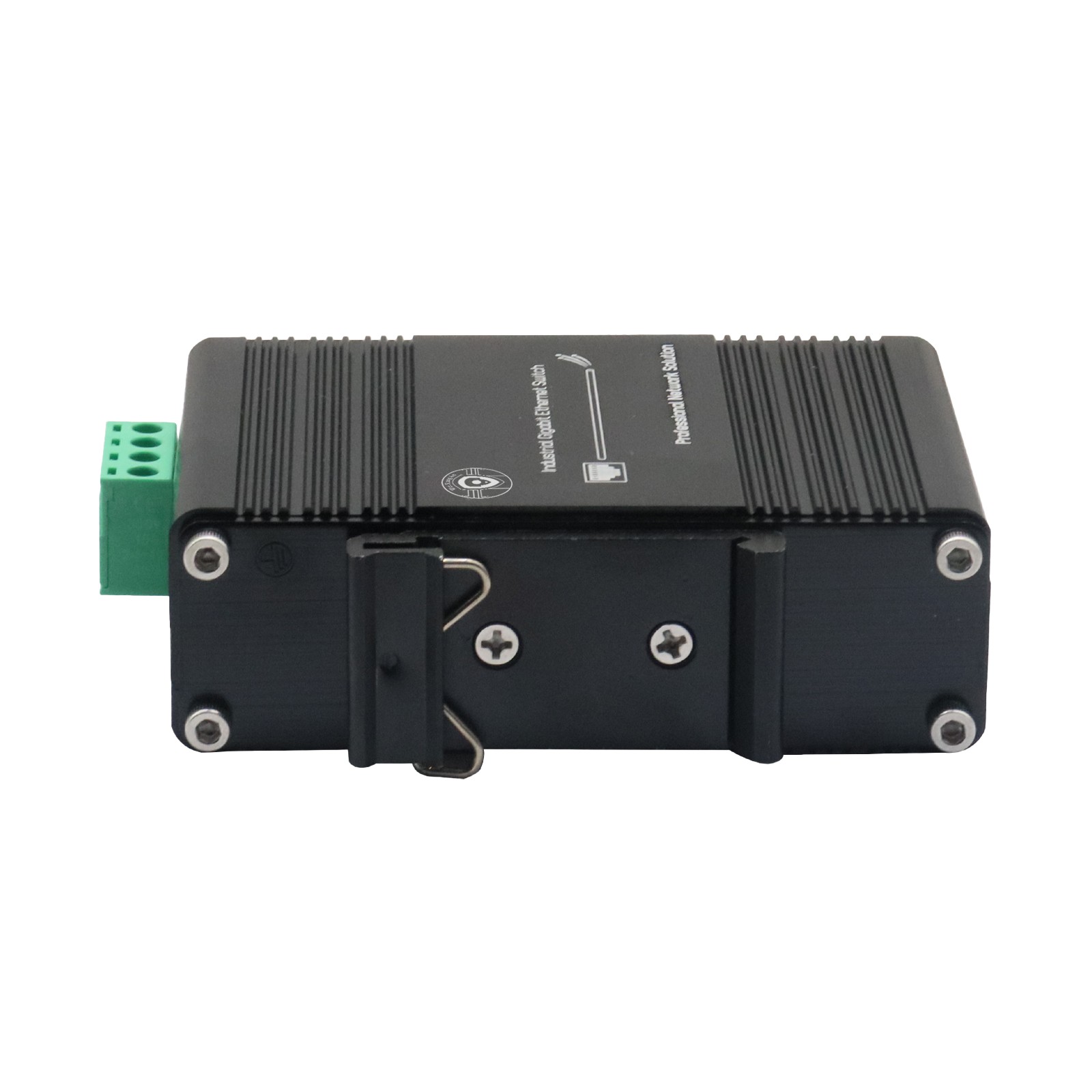

►   Supports DIN-Rail and Wall-mount installation

►   Industry standard design, dustproof and close design IP40, rugged high-strength metal case

►   -40°C to 80°C (-40°F to 176°F) operating temperature


Ethernet

Standards/Processing Type/Rate

IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.3az(EEE); Store-and-Forward; 14,880/148,800/1,488,000 pps (10/100/1000Mbps)


Buffer/Fabric/Len/MAC Table

4Mbit; 12Gbps; 9K Bytes; 2K entries

Interface

Connector/Optical Port

3x RJ45 (Ports1-3: 802.3at PoE+ injector); 1x SC 1000Base-X

Power over Ethernet (PoE)

Standard/Pin/Budget

IEEE 802.3af/at; 4/5(+),7/8(-); 48V/24V:90W, 12V:60W

Electrical & Mechanical

Input Power/Consumption

12~48VDC (4-pin terminal block); <95W (Non-PoE<6W)


Dimensions/Weight/Mounting

95×70×30mm; 0.3Kg; Aluminum Case (DIN-Rail/Wall-mount)


LED Indicators

PWR(Power), L/A(Ethernet LINK), FX(Fiber LINK), PoE(Status)

Environmental

Operating/Storage Temp

-40°C~75°C (-40°F~167°F); -40°C~85°C (-40°F~185°F)


Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Regulatory Approvals

Certifications/EMI/EMS

ISO9001, CE, FCC, RoHS; EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55024:2010; IEC 61000-4-2/3/4/5/6/8


Model

Description

WXA-I03G-1SC-P90

3-Port 10/100/1000T (IEEE 802.3at)+ 1-Port 1000X SC, 12-48VDC Wide Input & Voltage Booster

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately


3-Port 10/100/1000T (IEEE 802.3at)+ 1-Port 1000X SC, 12-48VDC Wide Input & Voltage Booster
