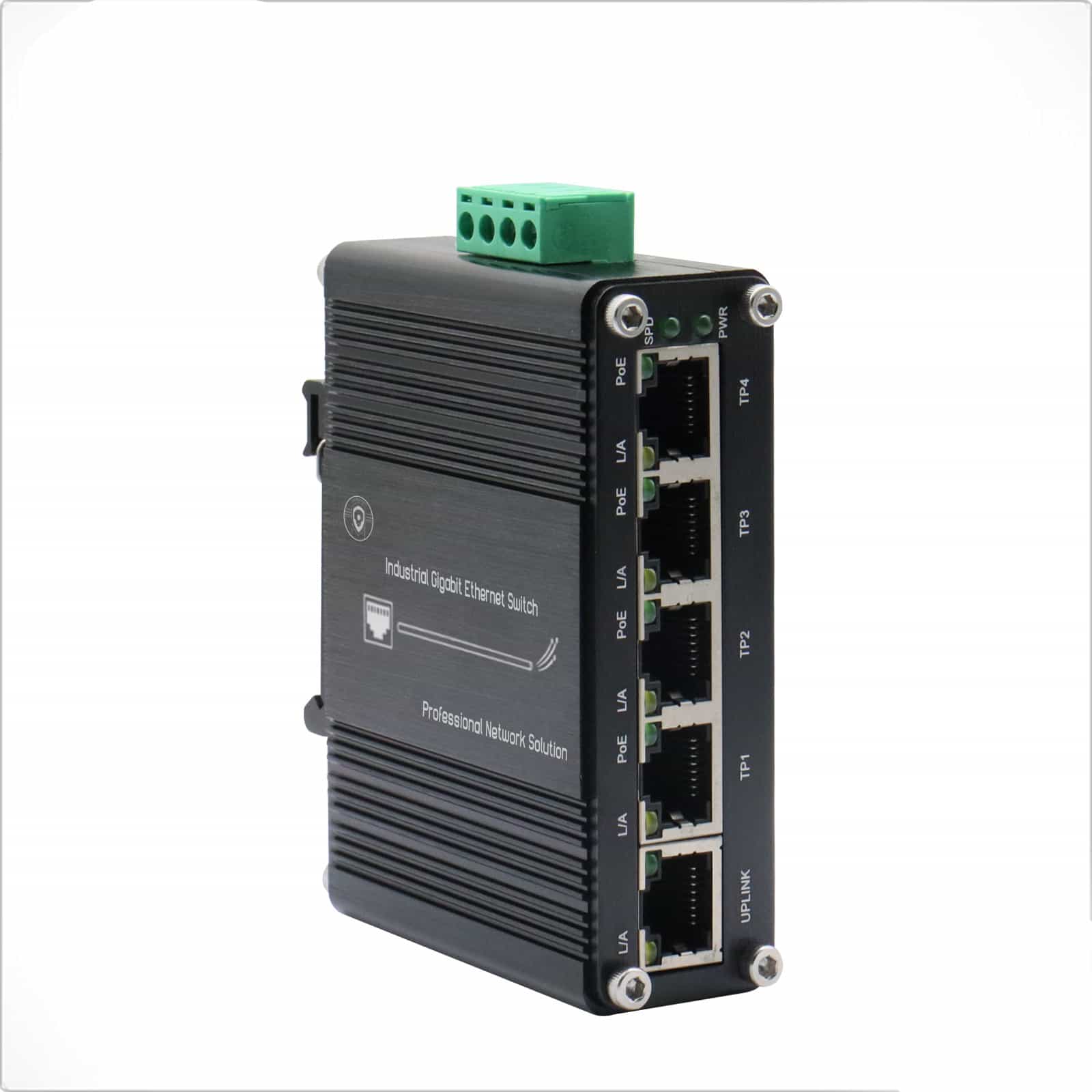

802.3at PoE+ Mini Industrial Switch: 4-Port Gigabit PoE + 1 Gigabit Uplink Port

802.3at PoE+ Mini Industrial Switch: 4-Port Gigabit PoE + 1 Gigabit Uplink Port

Model:WXA-I05G-P120

►   5 x 10/100/1000BASE-T ports (1 Gigabit uplink + 4 PoE+ ports) with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~48VDC wide range power input




￥ 0.00
19.00

Product Description

Model:WXA-I05G-P120

►   5 x 10/100/1000BASE-T ports (1 Gigabit uplink + 4 PoE+ ports) with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~48VDC wide range power input

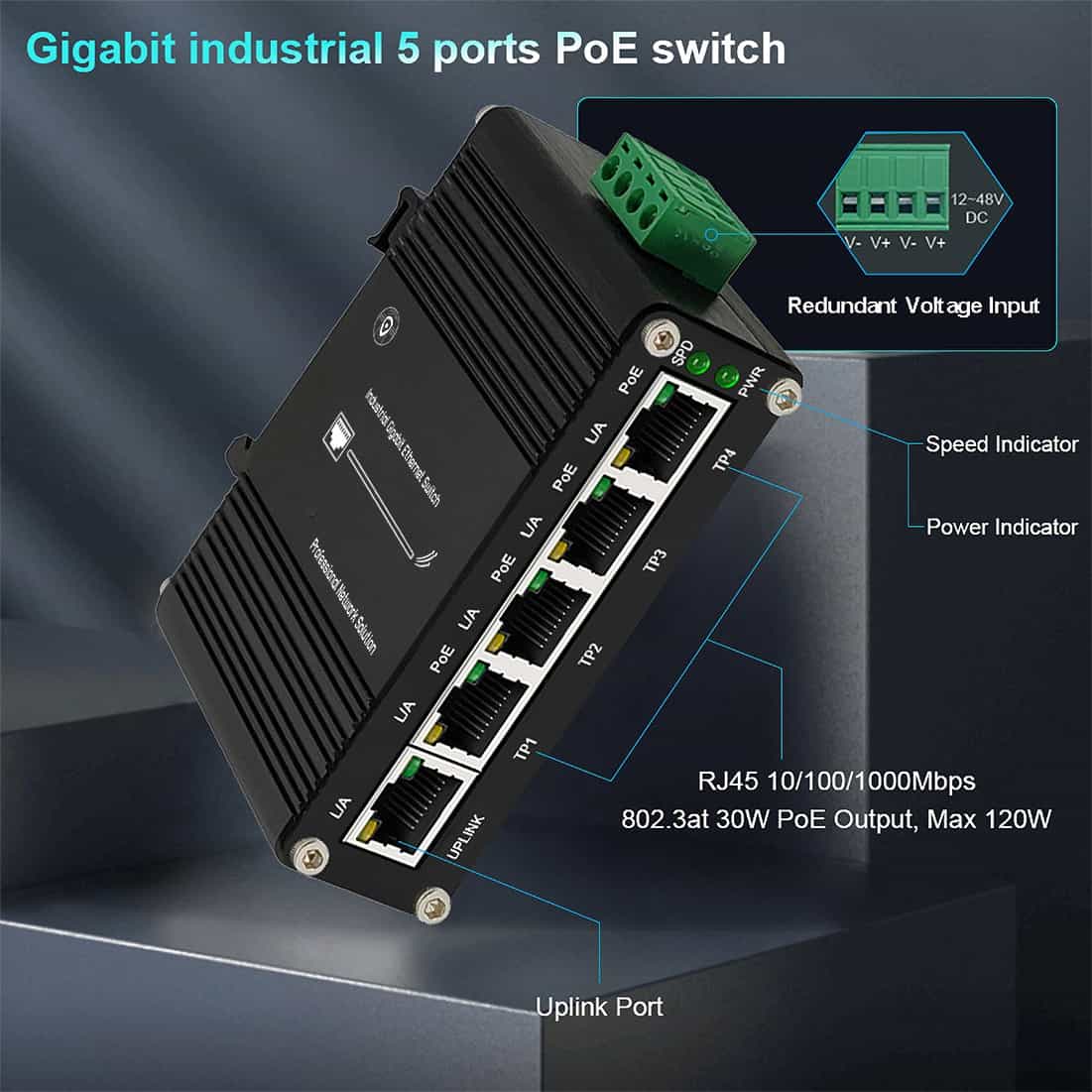

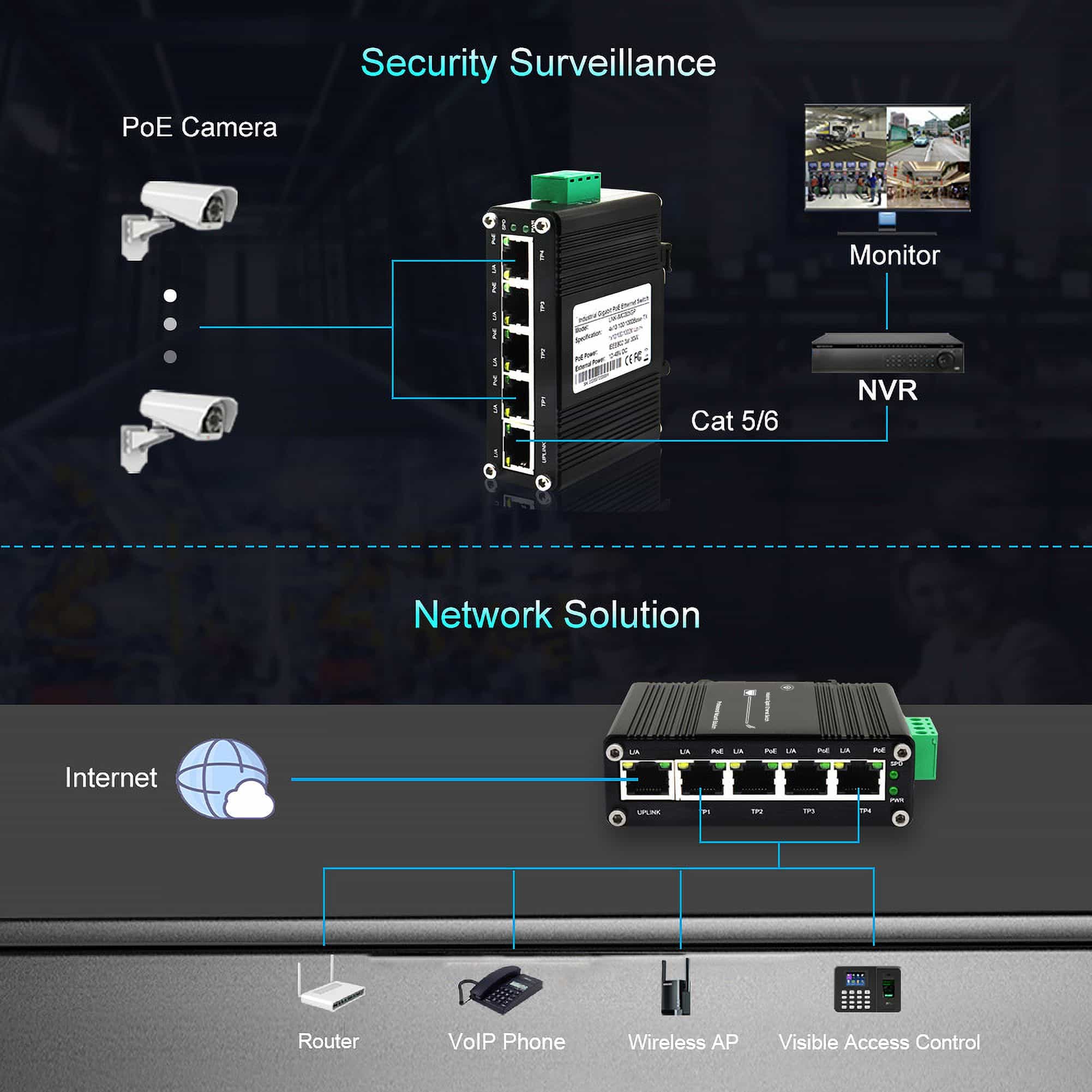

WXA-I05G-P120 is a mini industrial unmanaged ethernet switch features 4 x 10/100/1000BASE-T IEEE 802.3at PoE+ ports, 1 x 10/100/1000BASE-T uplink port, and a 12~48VDC wide-range power input. Engineered to meet critical industrial standards, it delivers reliable, straightforward operation with robust resistance to vibration and shock, plus a wide operating temperature range, making it ideal for diverse harsh environments.

Compliant with CE and FCC certifications, the switch has passed 100% burn-in testing to ensure consistent performance in industrial applications. It offers a cost-effective, trusted solution for industrial Ethernet connectivity needs.


  •  5 x 10/100/1000BASE-T ports (1 Gigabit uplink + 4 PoE+ ports)

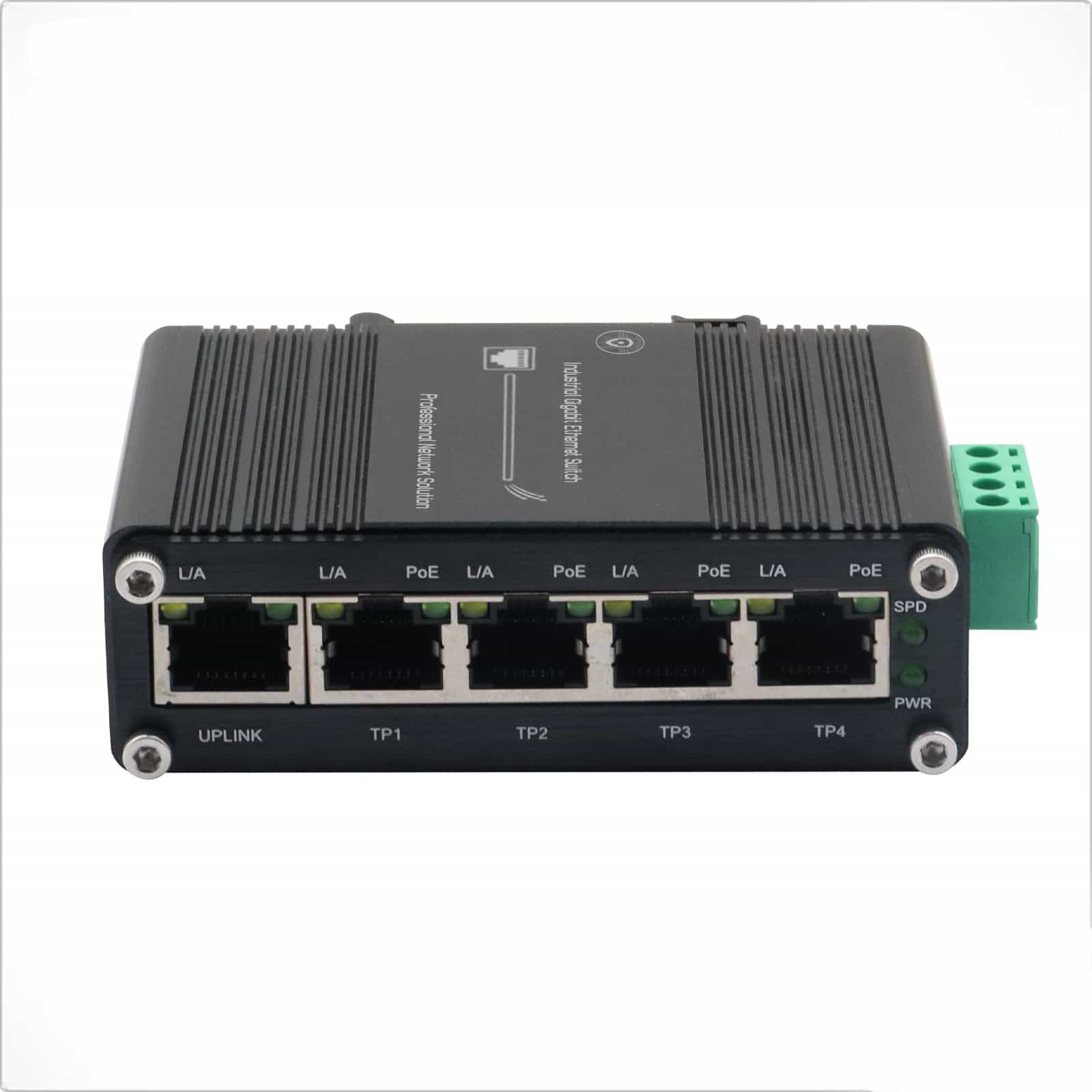

  •  5 x 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X

  •  Ports 1-4 support IEEE 802.3at PoE+ Injector

  •  12~48VDC wide range power input

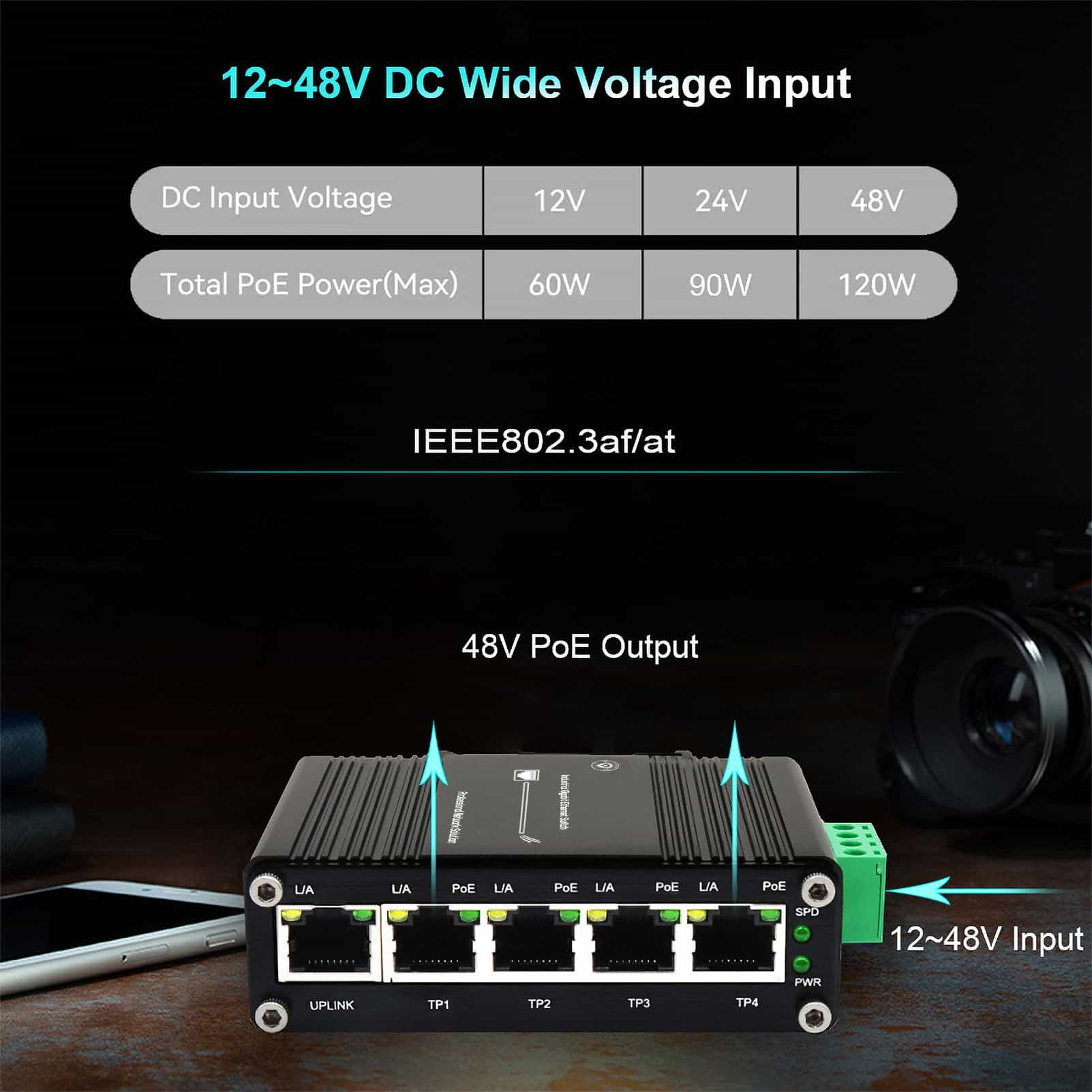

  •  PoE budget: Up to 120W (48VDC) / 90W (24VDC) / 60W (12VDC)

  •  Supports 802.3x Flow control

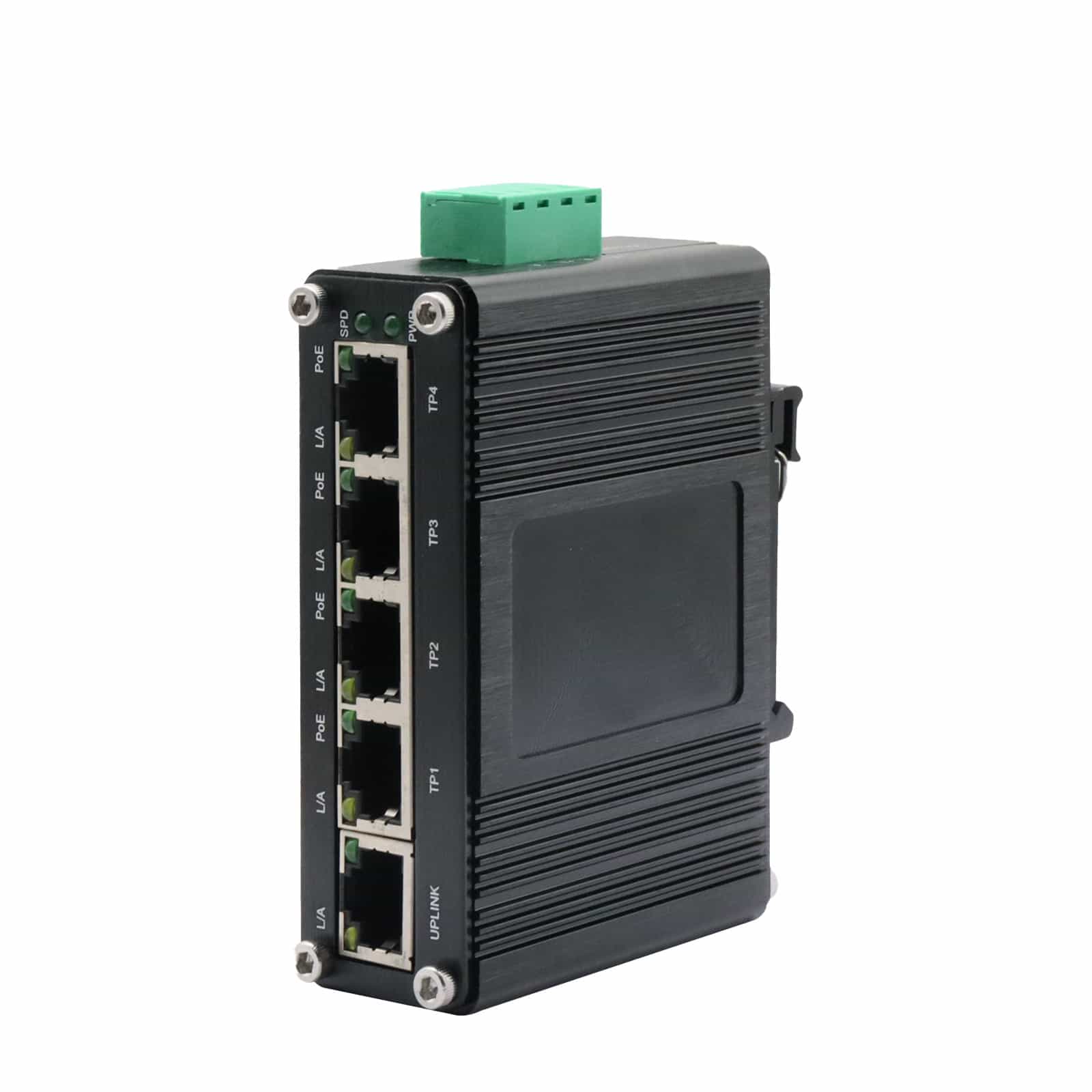

  •  Supports DIN-Rail and Wall-mount installation

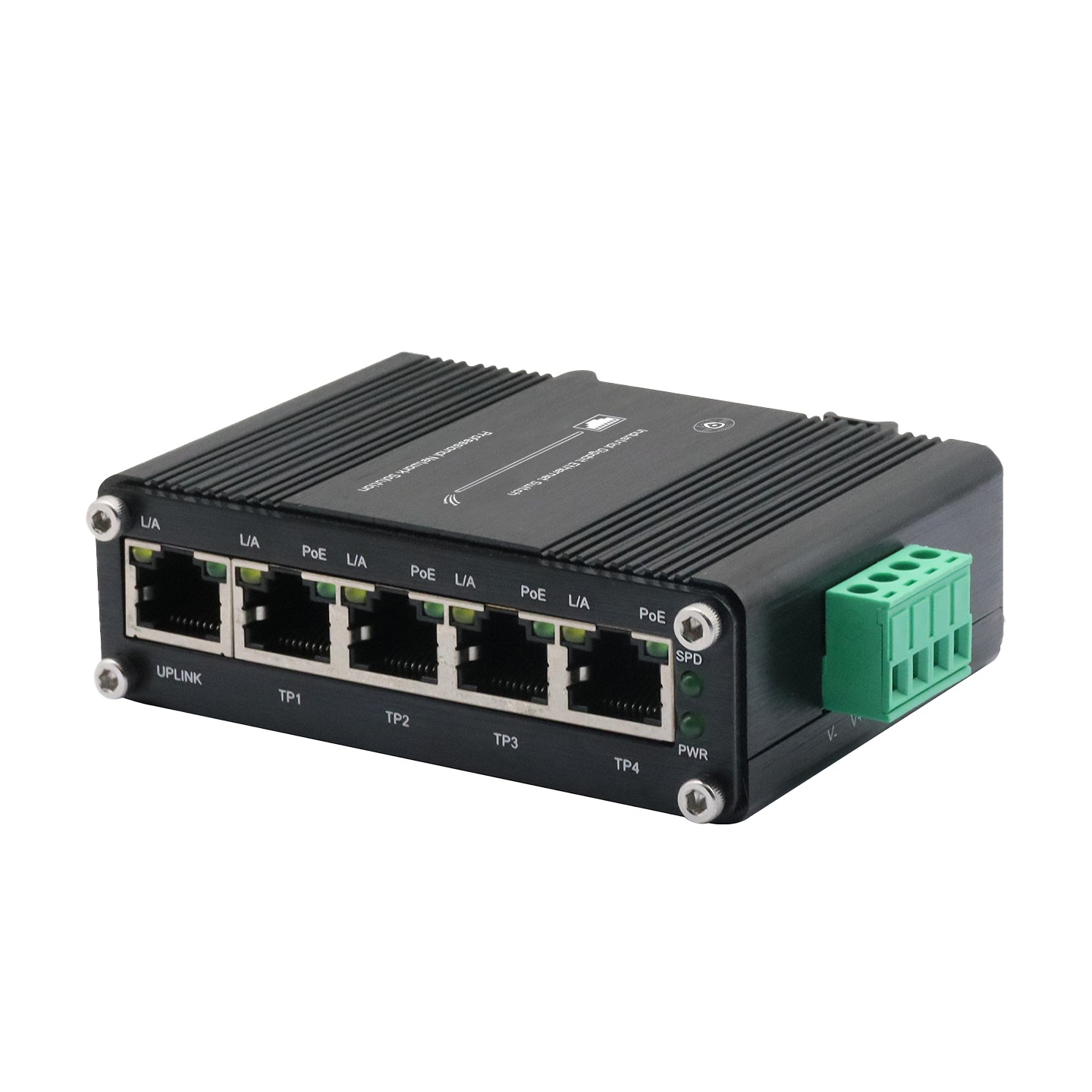

  •  Industrial-grade design with IP40 dustproof protection and rugged high-strength metal case

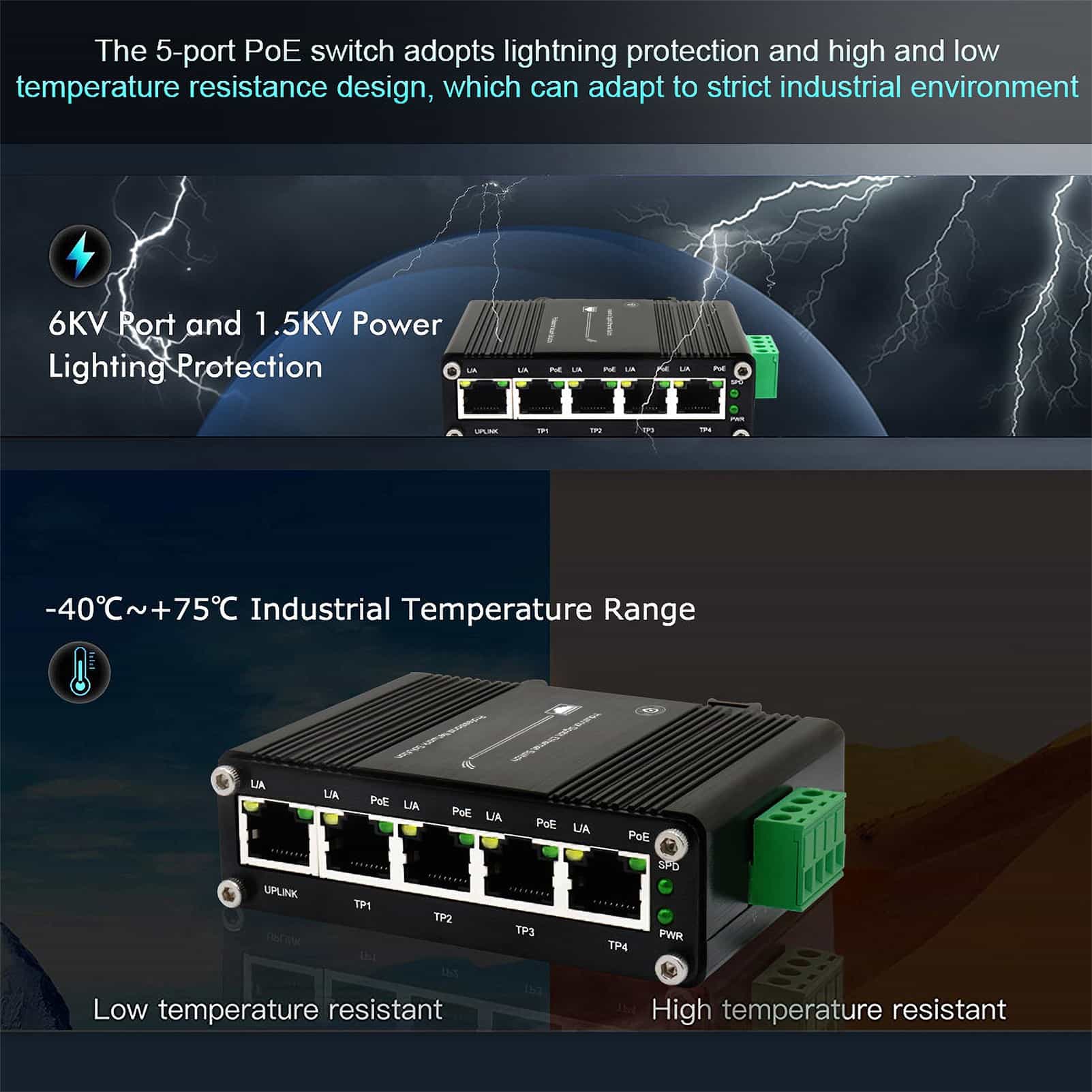

  •  Operating temperature: -40°C to 80°C (-40°F to 176°F)


Ethernet

Standards/Forward Rate/Switch Spec

IEEE 802.3/802.3u/802.3ab/802.3x/802.3az/802.3af/at (PoE+ PSE); 14,880/148,800/1,488,000 pps (10/100/1000Mbps); Switch Fabric:10Gbps non-blocking, Backplane:20Gbps, Forwarding rate:14.88Mpps


Packet Buffer/Len/MAC Table

1Mbits; 10Kbytes; 8K entries

Interface

Connector

5x 10/100/1000Base-T RJ45 (auto-MDI/MDI-X; Ports1-4: 802.3at PoE+ injector)

Power over Ethernet (PoE)

Standard/Pin/Budget

IEEE 802.3af/at; 4/5(+),7/8(-); 48V:120W /24V:90W /12V:60W

Environmental

Operating/Storage Temp

-40°C~80°C (-40°F~176°F); -40°C~85°C (-40°F~185°F)


Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Electrical & Mechanical

Power/Consumption/Protection

12~48VDC (Terminal Block); <125W (Non-PoE<6W); Overload:Auto Resettable, Reverse Polarity:Present


Dimensions/Weight/Mounting

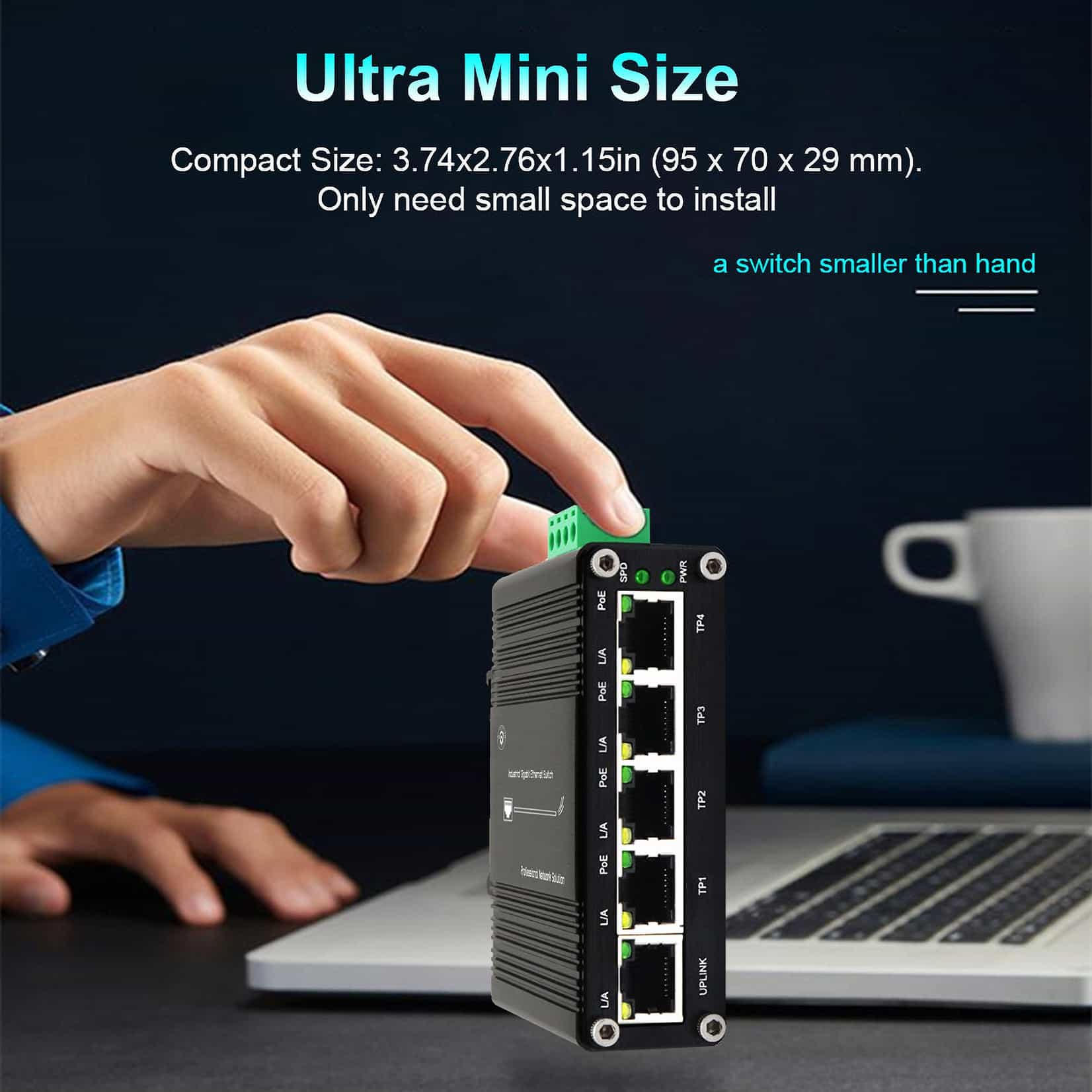

95×70×29mm; 0.25Kg; Aluminum Case (DIN-Rail/Wall-mount)


LED Indicators

PWR(Power), L/A(Link/Activity), PoE(Status)

Regulatory Approvals

Certifications/EMI/EMS

ISO9001; EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55032:2017; IEC 61000-4-2/3/4/5/6/8


Model

Description

WXA-I05G-P120

802.3at PoE+ Mini Industrial Switch: 4-Port Gigabit PoE + 1 Gigabit Ethernet Port

Mounting Options

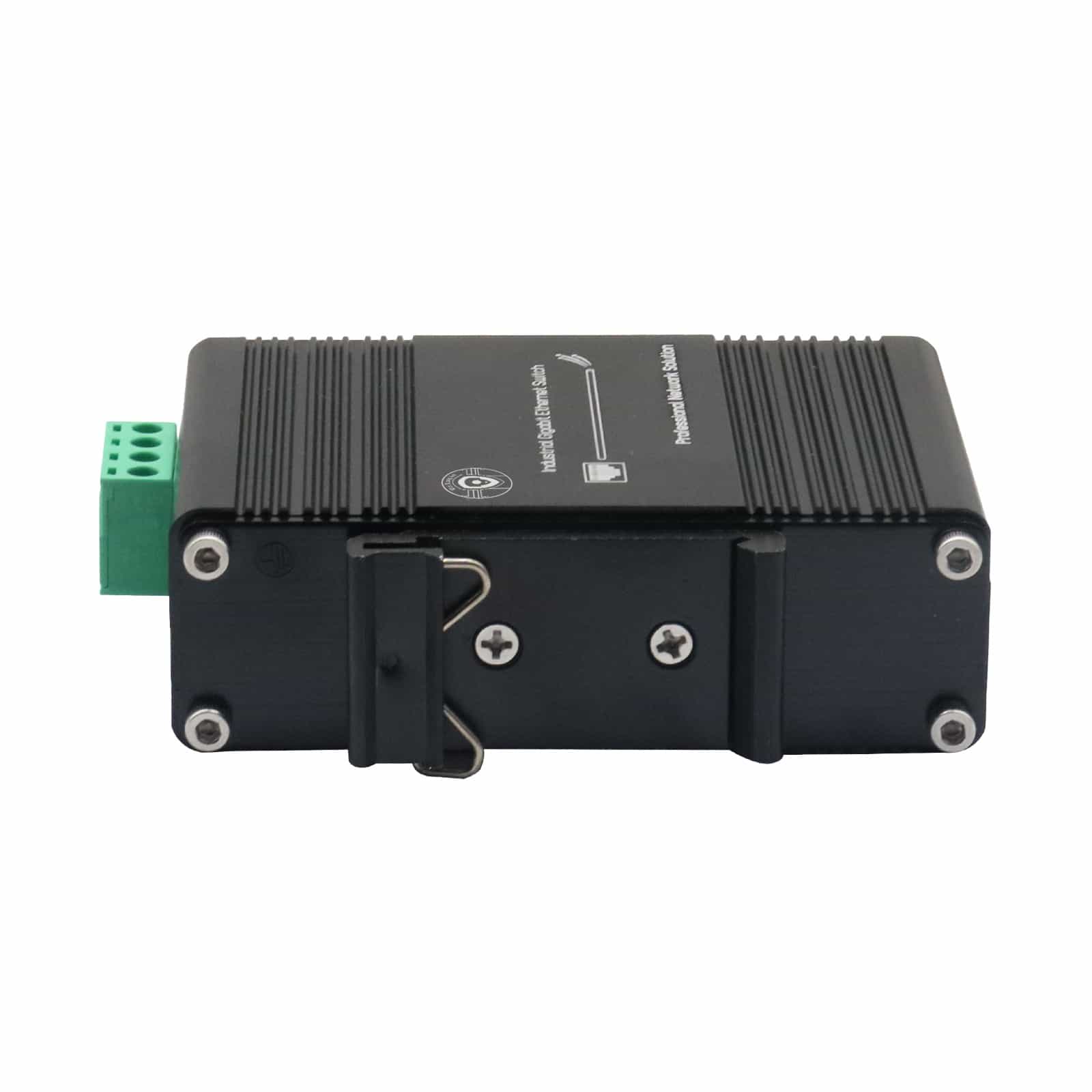

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
