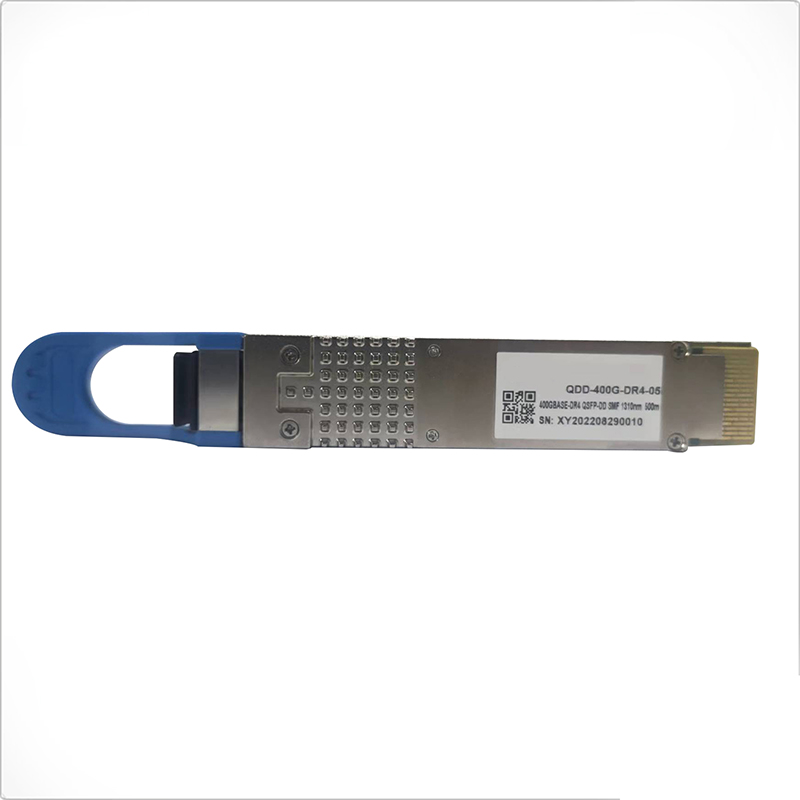

  • 400GBASE-DR4 QSFP-DD 1310nm 500m Transceiver

  • 400GBASE-DR4 QSFP-DD 1310nm 500m Transceiver

    Model:WXA-QDD-400G-DR4-05

    Ø  Compliant with IEEE802.3bs standard:

    -        400GAUI-8 electrical interface

    Ø  Compliant with IEEE 802.3bs standard:
    - 400GBASE-DR4 optical interface

    Ø  Compliant with QSFP-DD MSA HW Rev 5.1
    Type 2 housing with MPO-12 connector

    Ø  Compliant with QSFP-DD CMIS Rev 4.0


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-QDD-400G-DR4-05

Ø  Compliant with IEEE802.3bs standard:

-        400GAUI-8 electrical interface

Ø  Compliant with IEEE 802.3bs standard:
- 400GBASE-DR4 optical interface

Ø  Compliant with QSFP-DD MSA HW Rev 5.1
Type 2 housing with MPO-12 connector

Ø  Compliant with QSFP-DD CMIS Rev 4.0


400GBASE-DR4 QSFP-DD 1310nm 500m Transceiver

Features


Ø  Compliant with IEEE802.3bs standard:

-        400GAUI-8 electrical interface

Ø  Compliant with IEEE 802.3bs standard:
- 400GBASE-DR4 optical interface

Ø  Compliant with QSFP-DD MSA HW Rev 5.1
Type 2 housing with MPO-12 connector

Ø  Compliant with QSFP-DD CMIS Rev 4.0

Ø  Supports 3dB channel insertion loss

Ø  Maximum power consumption 10W

Ø  Case operating temperature 0°C to 70°C

Ø  Two wire serial Interface with digital diagnostic monitoring

Ø  Complies with EU Directive 2011/65/EU
(RoHS compliant)

Ø  Class 1 Laser


Application

► Fiber Channel Switch Infrastructure

► Router/Server interface

► Other optical transmission systems


Ordering Information


Part No.

Application

Data Rate

Laser Source

Fiber Type

WXA-QDD-400G-DR4-05

400GBASE-DR4

400GB Ethernet

EML

Single Mode Fiber


订购信息


零件号

应用

数据速率

激光来源

纤维类型

WXA-QDD-400G-DR4-05

400GBASE-DR4

400GB Ethernet

EML

Single Mode Fiber
