  • USB3.1 Type C to C Fiber Optical Cable

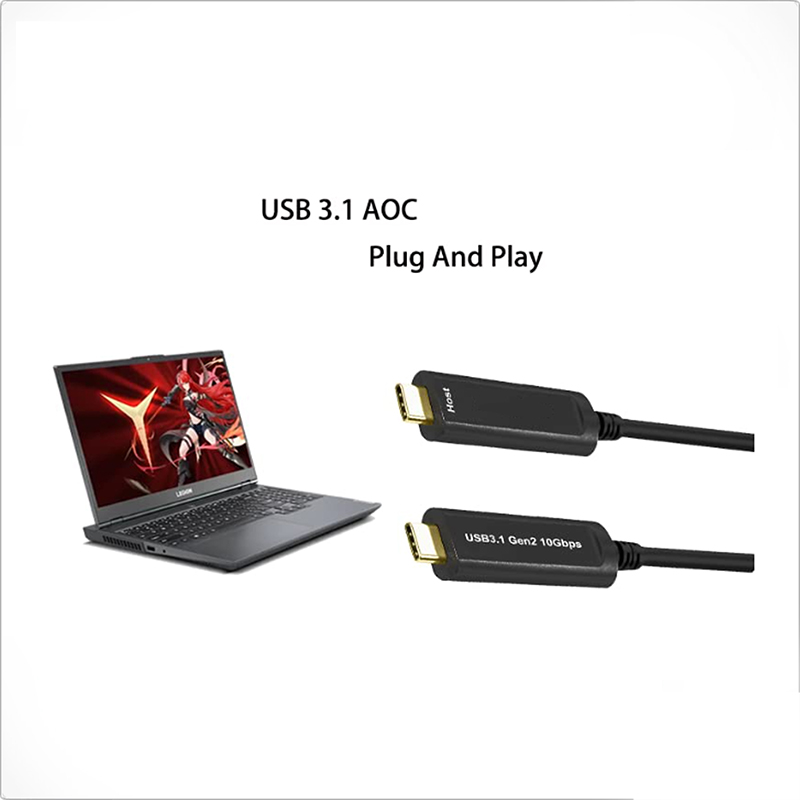

  • USB3.1 Type C to C Fiber Optical Cable

    Model:WXA-U31-AOC series

    ►    Plug and play, no need external power supply.

    ►    Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps.

    ►    Supports both USB 2.0 and 3.1 in same cable up to 40 meters.

    ►    Supports up to 100m (300ft.) cable length.


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-U31-AOC series

►    Plug and play, no need external power supply.

►    Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps.

►    Supports both USB 2.0 and 3.1 in same cable up to 40 meters.

►    Supports up to 100m (300ft.) cable length.


USB 3.1 fiber optical cable Under the help of optical fiber design, cable OD only 4.8mm, easy for installation, support plug & play, no need external power supply. And has lower EMI interrupt, and without signal loss at high-speed signal transmission. Different USB devices with comprehensive compatibility testing before shipment, has perfect compatible with most USB device.

E-link USB 3.1 Active Optical Cable one side adopt standard USB type C male at Host (PC) side, and USB 3.1 type C at Device side, this can allow users can use E-link cable at USB type C interface device, it saves converting, space saving, it is most convenient for the application.

E-link USB cable support Windows, Linux, Mac OS, plug & play, no need installation firmware. Benefit on it is long distance (10m 15m 20m 30m 50m), it is widely used on CCTV, Industrial Camera, Machine Vision, Medical System, Pro-AV system integrator, Video Conference Room, Deep Vision applications.


►    Plug and play, no need external power supply.

►    Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps.

►    Supports both USB 2.0 and 3.1 in same cable up to 40 meters.

►    Supports up to 100m (300ft.) cable length.

►    Low EMI (electromagnetic interference) protection.

►    Standard operating temp: 0 to 50C.

►    Widely used on Industrial Camera, Machine Vision system, Medical System, Security Monitoring system, Conference system, Broadcasting system, High frequently used on Printer, Scanner, Touch Screen, Camera, Game Controller etc.


Performance

Protocol Specification

USB 3.1, USB 3.0, USB 2.0 (copper)

Transmission Data Rate

10Gbps

Interface

Input

USB Type-C

Output

USB Type-C

Power Supply

Low power consumption, no external power supply required

Cable

Cable Type

Optical fiber cable

Fiber Type

2-core MMF

Cable Length Options

1/2/5m

Max. Cable Length

5m

Cable Jacket

TPE/85A

Color

Black

Cable Diameter

4.3mm±0.15mm

Weight

Depends on length

Min. Bending Radius

12mm

Max. Tensile Load

221N

Working Environment

Operating Temperature

0℃to +50℃

Storage Temperature

-40℃to +80℃

Optical Power

Input Voltage

5~20V

Power Supply Capability

3A

Power Consumption

≤ 500mW

Package

Package List

Anti-static bag, cable tie, transmission line, instruction manual

Attention:

During use, be careful to avoid excessive bending and breaking the fiber. For details, please refer to the bending radius.


Model

Description

WXA-U31-AOC-5

USB3.1 Type C to C Fiber Optical Cable, 5 Meters

WXA-U31-AOC-10

USB3.1 Type C to C Fiber Optical Cable, 10 Meters

WXA-U31-AOC-15

USB3.1 Type C to C Fiber Optical Cable, 15 Meters

WXA-U31-AOC-20

USB3.1 Type C to C Fiber Optical Cable, 20 Meters

WXA-U31-AOC-30

USB3.1 Type C to C Fiber Optical Cable, 30 Meters
