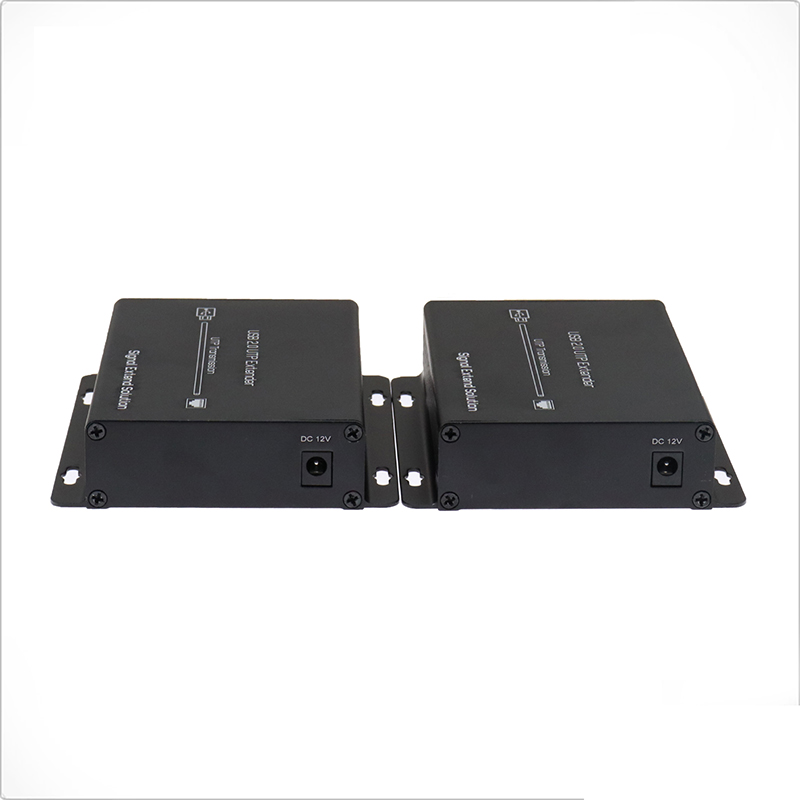

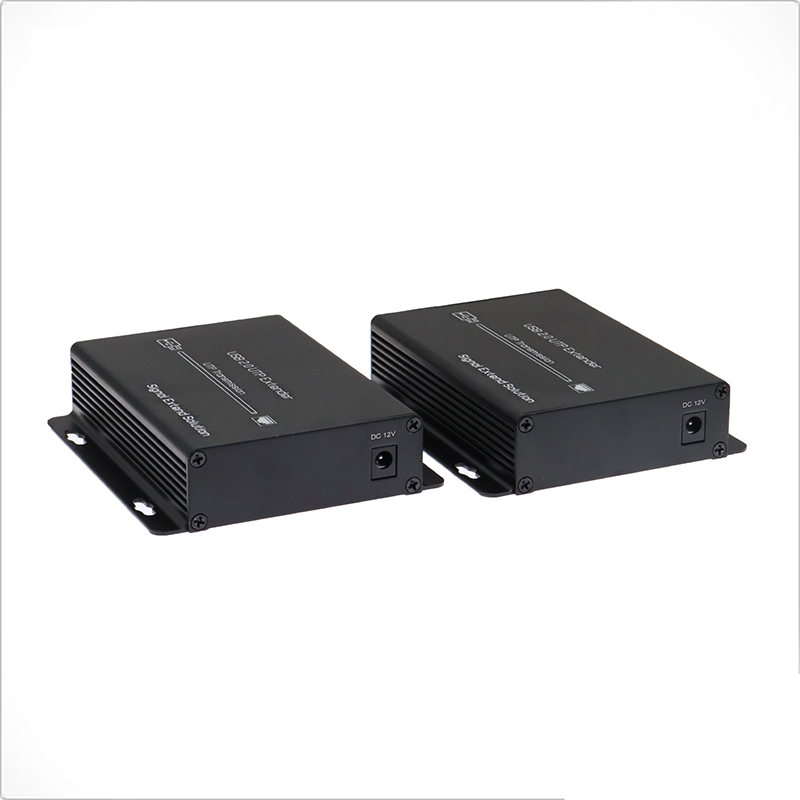

  • 4-Port USB 2.0 over UTP Extender

  • 4-Port USB 2.0 over UTP Extender

    Model:WXA-U4T1-2.0


    ► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

    ► Support USB-HUB expansion, support all kinds of USB devices;

    ► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.


    • ￥0.00
      ￥0.00
Product Description

Model:WXA-U4T1-2.0


► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

► Support USB-HUB expansion, support all kinds of USB devices;

► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.


Overview

This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.


Feature


► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;

► Support USB-HUB expansion, support all kinds of USB devices;

► No Drivers Required, compatible with all operating systems;

► Support hot-swappable, plug and play;

► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.


Application

Technical Indexes


UTP

Connector

RJ45

Max. Distance

Cat5 cable: 100 meter, Cat6 cable: 170 meter

USB2.0

Input / Output

USB2.0 Type-A

Physical

Size (L× W ×H)

117mm x104mm x28mm

Case

Aluminum

Color

Black

N.W.

0.75Kg

Power

Voltage

5-12V DC

Power consumption

<5W

Environment

Working temperature

-20℃~70℃

Storage temperature

-40~85℃

Humidity

0-95% (non-condensing)


Order Information


Part No

Description of product

WXA-U4T1-2.0

4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable
